EB1620JA10-26.000M TR

Crystals Overview

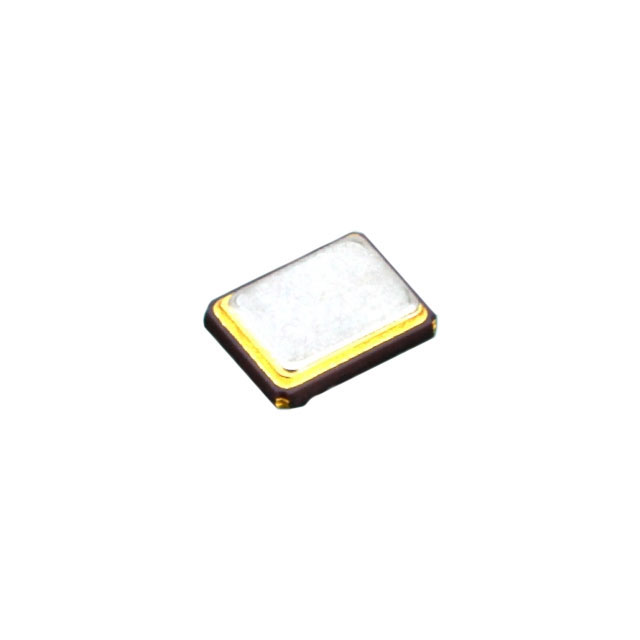

The Ecliptek EB1620JA10-26.000M TR is a parallel fundamental quartz crystal resonator designed for automotive applications. It operates at a nominal frequency of 26 MHz with a load capacitance of 10 pF. The component features a 4-pin surface mount ceramic package measuring 2.0 x 1.6 x 0.5 mm. It supports a series resistance of up to 150 Ω and a drive level of 100 µW. Frequency tolerance is specified at ±30 ppm over the operating temperature range of -40°C to +85°C, with an aging rate of 3 ppm per year maximum.

Crystals Feature Summary

• AEC-Q200 qualified for automotive grade reliability
• Sealed ceramic SMD construction for environmental protection
• Supports standard 10 pF load capacitance

Crystals Applications

• Automotive body control modules
• ADAS domain controllers
• MCU clock sources in vehicles

Crystals Procurement Notes

Verify the specific suffix against the manufacturer's current datasheet to confirm exact frequency tolerance and aging specifications, as these parameters vary across the EB1620 family. Ensure the ordering code matches the required 26 MHz output and 10 pF load capacitance. Confirm RoHS compliance status for your region. Cross-reference the package dimensions (2.0x1.6mm) with your PCB footprint library to prevent assembly errors during procurement.

Crystals Selection Notes

Select this component when designing for automotive environments requiring AEC-Q200 certification. It is suitable for systems needing a stable 26 MHz reference with moderate precision requirements. Consider the 150 Ω series resistance limit when designing oscillator circuits to ensure reliable startup. Verify that the -40°C to +85°C temperature range meets the thermal profile of the target application zone.

Crystals Part Context

This part belongs to the EB1620 series of small-sized automotive quartz crystals from Ecliptek. The series utilizes seam-sealed ceramic packages to enhance moisture and vibration resistance compared to plastic packages. It is engineered to meet the rigorous durability standards of modern vehicle electronics, providing a compact timing solution for space-constrained automotive boards.

Crystals Replacement Considerations

Direct substitutes must match the 26 MHz frequency, 10 pF load capacitance, 2.0x1.6mm package, and AEC-Q200 qualification. Generic industrial crystals lack the necessary automotive reliability certifications. Verify equivalent parts from other manufacturers offer identical series resistance and aging characteristics to ensure circuit compatibility.
