EB3250JA12-10.000M TR

Crystals Overview

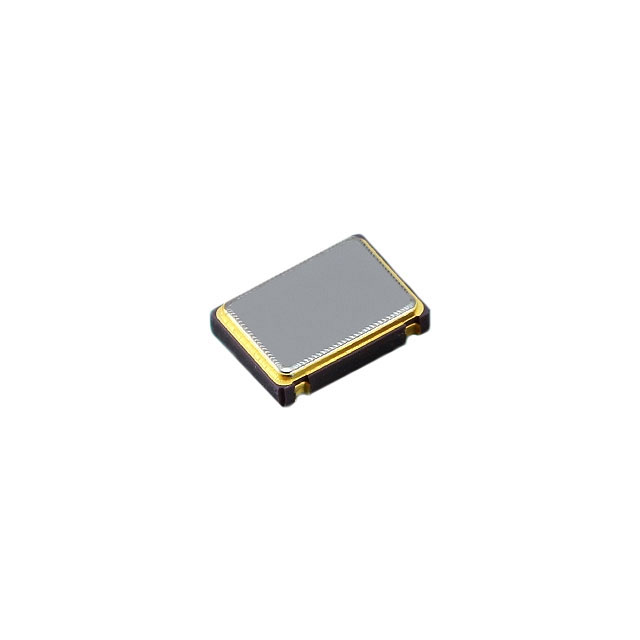

The EB3250JA12-10.000M TR is a ceramic resonator manufactured by Ecliptek, operating at a nominal frequency of 10 MHz. It features a tolerance of ±15 ppm and stability of ±30 ppm over the specified temperature range. The device supports a load capacitance of 12 pF and has an equivalent series resistance of 100 Ohms. Designed for automotive applications, it complies with AEC-Q200 standards. The component operates within a temperature range of -40°C to +85°C and is supplied in a surface-mount package.

Crystals Feature Summary

• Complies with AEC-Q200 automotive qualification standards
• Provides stable 10 MHz timing signals
• Designed for surface-mount assembly

Crystals Applications

• Automotive electronic systems
• Microcontroller clock sources
• Timing circuits requiring AEC-Q200 compliance

Crystals Procurement Notes

Verify the specific ordering suffix against the manufacturer's current documentation to ensure correct packaging and tape specifications. Confirm that the AEC-Q200 qualification status remains active for the requested quantity. Check for any recent product discontinuance notifications or lifecycle changes directly from Ecliptek before finalizing procurement plans.

Crystals Selection Notes

Select this component when an automotive-grade ceramic resonator is required for 10 MHz applications. Ensure the system design accommodates the 12 pF load capacitance and 100 Ohm impedance characteristics. Verify that the ±15 ppm tolerance meets the target circuit's frequency accuracy requirements under all operating conditions.

Crystals Part Context

This part belongs to the EB3250JA12 series of ceramic resonators from Ecliptek. These components are engineered for robust performance in demanding environments, specifically targeting the automotive sector. The series offers various frequency options while maintaining consistent electrical and mechanical specifications across the lineup.

Crystals Replacement Considerations

Direct substitutes must match the 10 MHz frequency, 12 pF load capacitance, and AEC-Q200 qualification. Verify package dimensions and pin configuration compatibility.
