EBC15DCSN

Edgeboard Connectors Overview

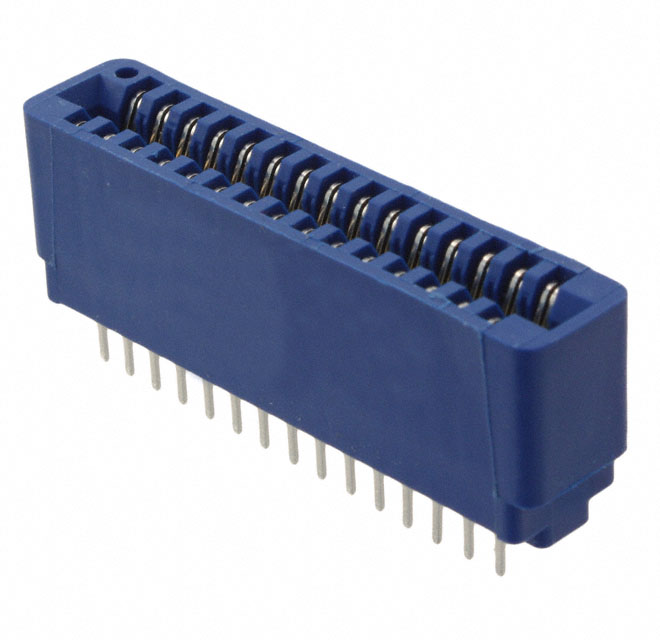

The EBC15DCSN is a dual-edge female card edge connector manufactured by Sullins Connector Solutions. It features 30 positions arranged in two rows with a 0.100-inch (2.54mm) contact center spacing. Designed for through-hole, right-angle mounting, the connector utilizes phosphor bronze contacts with a 10.0µin (0.25µm) gold plating thickness and ring bellow contact types. The insulator is constructed from polybutylene terephthalate (PBT). It accommodates a mating PCB thickness of 0.062 inches (1.57mm) and operates within a temperature range of -65°C to 125°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration with ring bellow contact design
• Gold-plated phosphor bronze contacts for reliable signal transmission
• Right-angle through-hole mounting capability
• Compatible with standard 0.062 inch thick printed circuit boards

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-board connections
• Telecommunications equipment utilizing standard card edge interfaces
• Test and measurement instrumentation modules
• Consumer electronics assemblies needing high-density interconnects

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official Sullins documentation to ensure correct insulation material and keying options. Confirm that the target application strictly adheres to the 0.062-inch PCB thickness specification, as variations may require different part numbers. Check RoHS compliance status and flammability ratings against project requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female interface with 0.100-inch pitch is required for right-angle assembly. Ensure the design supports through-hole soldering processes compatible with the specified contact termination. Validate that the operating environment remains within the -65°C to 125°C thermal limits defined by the PBT insulator material properties.

Edgeboard Connectors Part Context

This connector belongs to the EBC series of female card edge connectors from Sullins Connector Solutions. The series offers various configurations for different PCB thicknesses and mounting styles. The EBC15DCSN specifically addresses applications requiring dual-edge access with standard 0.100-inch spacing, providing a standardized solution for general-purpose electronic interconnections.

Edgeboard Connectors Replacement Considerations

Direct substitutes include variants such as EBC15DTMN or ECC15DCBI, provided they match the 0.100-inch pitch and dual-edge female specifications. Verify mechanical dimensions and mounting hole patterns to ensure compatibility with existing PCB layouts and enclosure constraints.
