Product Detailed Parameters
- Description：BLE 5.0 (NRF52832) WITH ANTENNA,
- Series：-
- Mfr：KAGA FEI AMERICA, INC.
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：-
- Protocol：-
- Modulation：-
- Frequency：-
- Data Rate：-
- Power - Output：-
- Sensitivity：-
- Serial Interfaces：-
- Antenna Type：-
- Utilized IC / Part：-
- Memory Size：-
- Voltage - Supply：-
- Current - Receiving：-
- Current - Transmitting：-
- Mounting Type：-
- Operating Temperature：-
- Package / Case：-
Download product information
Overview

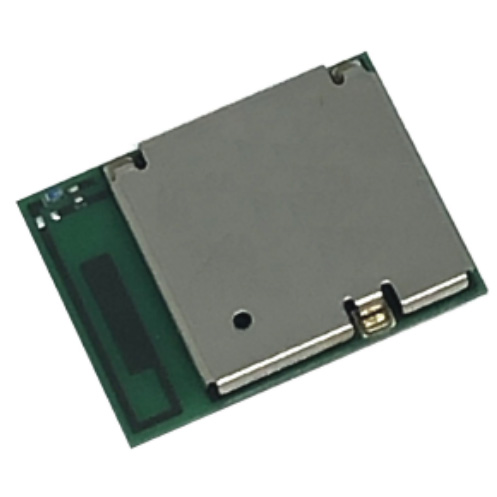

The EC2832AA2 is a Bluetooth v5.0 transceiver module manufactured by Kaga FEI America, Inc. Designed for surface mount applications, this component operates within the 2.4GHz frequency band and features an integrated monopole antenna configuration. It serves as a core wireless communication solution for embedded systems requiring short-range data transmission. The module supports standard Bluetooth protocols to facilitate connectivity in various electronic devices.
Feature Summary
- Supports Bluetooth v5.0 protocol standards
- Integrates a 2.4GHz radio transceiver
- Features a built-in monopole antenna design
- Configured for surface mount technology
Applications
- Embedded wireless communication systems
- Short-range data transfer devices
- IoT sensor nodes requiring Bluetooth connectivity
Procurement Notes
Verify the specific manufacturer part number against official Kaga FEI documentation to ensure compatibility with target designs. Confirm that the surface mount package type matches the PCB footprint requirements. Check for any required certification marks or regional compliance specifications relevant to the deployment location before finalizing procurement orders.
Selection Notes
Select this module when a compact, surface-mountable Bluetooth v5.0 solution is required. Ensure the host system can accommodate the 2.4GHz RF environment and provides necessary power supply levels. Consider the integrated monopole antenna implications for device enclosure design and signal integrity during the initial hardware architecture phase.
Part Context
This component belongs to the wireless transceiver category, specifically tailored for Bluetooth-enabled applications. It is distinct from general-purpose RF modules by its adherence to Bluetooth v5.0 specifications. The module is intended for integration into larger electronic assemblies rather than standalone use, serving as the primary interface for wireless data exchange.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Evaluate alternative modules only after verifying pinout compatibility and protocol support through official manufacturer cross-reference lists.
