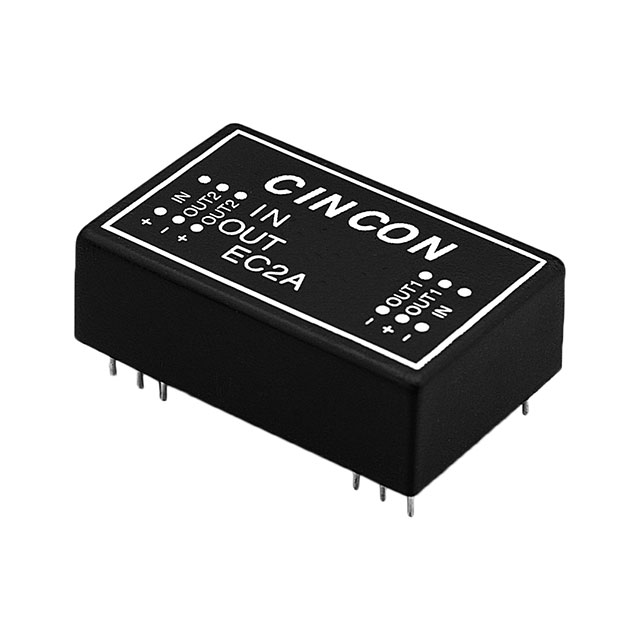

EC2A45H

EC2A45H is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Cincon Electronics Co. LTD. Its product description is DC DC CONVERTER +/-15V 1.5W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for EC2A45H

• Description：DC DC CONVERTER +/-15V 1.5W
• Series：EC2A (1.5W)
• Mfr：Cincon Electronics Co. LTD
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：43.2V
• Voltage - Input (Max)：52.8V
• Voltage - Output 1：15V
• Voltage - Output 2：-15V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：50mA, 50mA
• Power (Watts)：1.5 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-25°C ~ 71°C
• Efficiency：50%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 14 Leads
• Size / Dimension：1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for EC2A45H
