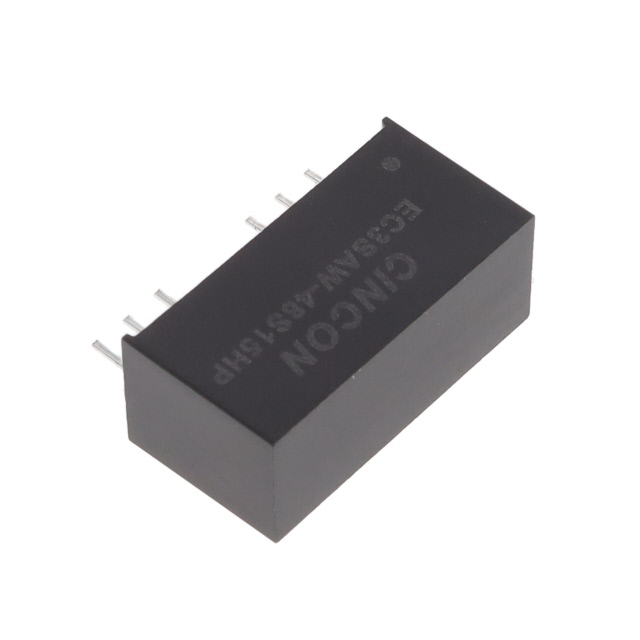

EC3SAW-48S15HP

EC3SAW-48S15HP is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Cincon Electronics Co. LTD. Its product description is DC DC CONVERTER 15V 3W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for EC3SAW-48S15HP

• Description：DC DC CONVERTER 15V 3W
• Series：EC3SAW (3W)
• Mfr：Cincon Electronics Co. LTD
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：75V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：200mA
• Power (Watts)：3 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：84%
• Mounting Type：Through Hole
• Package / Case：8-SIP Module, 7 Leads
• Size / Dimension：0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, UL
• Standard Number：-

DC DC Converters datasheet and documents for EC3SAW-48S15HP
