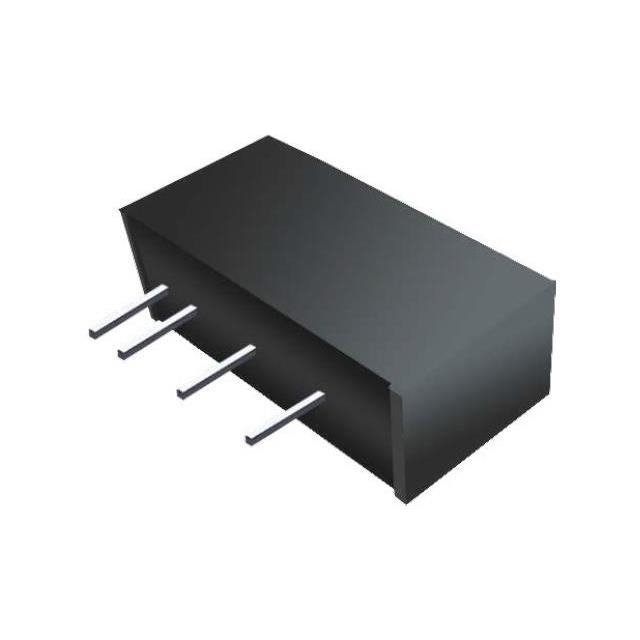

EC3T-05S03P

EC3T-05S03P is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Adam Tech. Its product description is DC-DC CONVERTER, ISOLATED MODULE. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for EC3T-05S03P

• Description：DC-DC CONVERTER, ISOLATED MODULE
• Series：EC3 (1W)
• Mfr：Adam Tech
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：303mA
• Power (Watts)：1 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：76%
• Mounting Type：Through Hole
• Package / Case：4-SIP Module
• Size / Dimension：0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for EC3T-05S03P
