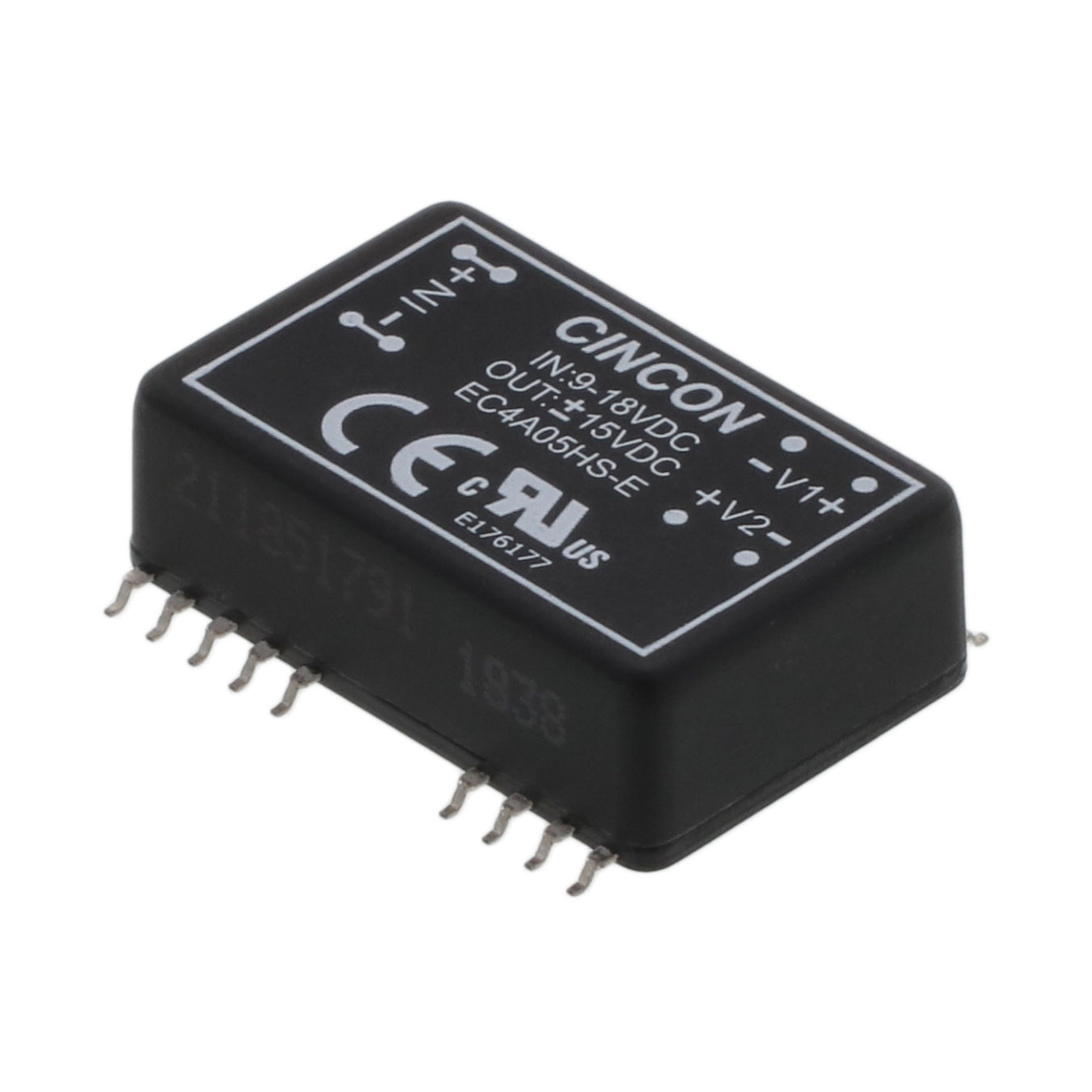

EC4A05HS-E

EC4A05HS-E is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Cincon Electronics Co. LTD. Its product description is LOW POWER DC-DC I/P:9-18VDC O/P:. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for EC4A05HS-E

• Description：LOW POWER DC-DC I/P:9-18VDC O/P:
• Series：EC4A-E (6W)
• Mfr：Cincon Electronics Co. LTD
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：18V
• Voltage - Output 1：15V
• Voltage - Output 2：-15V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：200mA, 200mA
• Power (Watts)：6 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：85%
• Mounting Type：Surface Mount
• Package / Case：24-SMD Module, 18 Leads
• Size / Dimension：1.25" L x 0.80" W x 0.45" H (31.8mm x 20.3mm x 11.4mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：CE, cURus
• Standard Number：60950-1; 62368-1

DC DC Converters datasheet and documents for EC4A05HS-E
