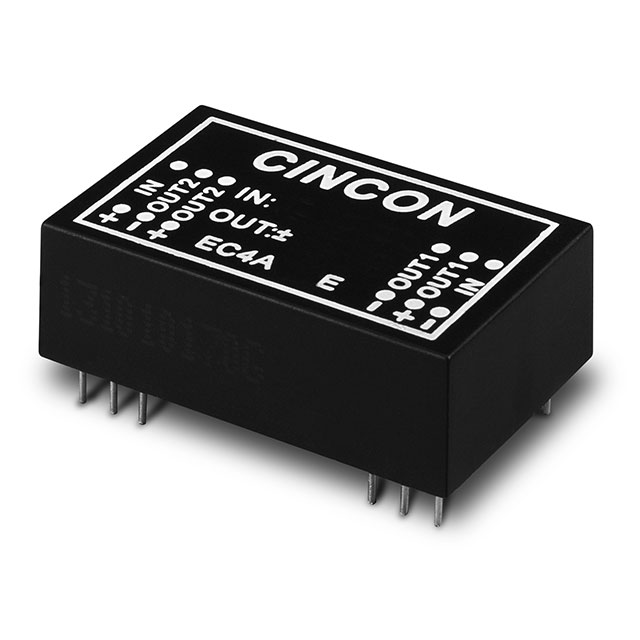

EC4A21M-E

EC4A21M-E is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Cincon Electronics Co. LTD. Its product description is DC DC CONVERTER 5V 5W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for EC4A21M-E

• Description：DC DC CONVERTER 5V 5W
• Series：EC4A-E (6W)
• Mfr：Cincon Electronics Co. LTD
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：72V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1A
• Power (Watts)：5 W
• Voltage - Isolation：500 V
• Applications：ITE (Commercial)
• Features：SCP, UVLO
• Operating Temperature：-40°C ~ 100°C (With Derating)
• Efficiency：83%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 14 Leads
• Size / Dimension：1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, cURus
• Standard Number：60950-1

DC DC Converters datasheet and documents for EC4A21M-E
