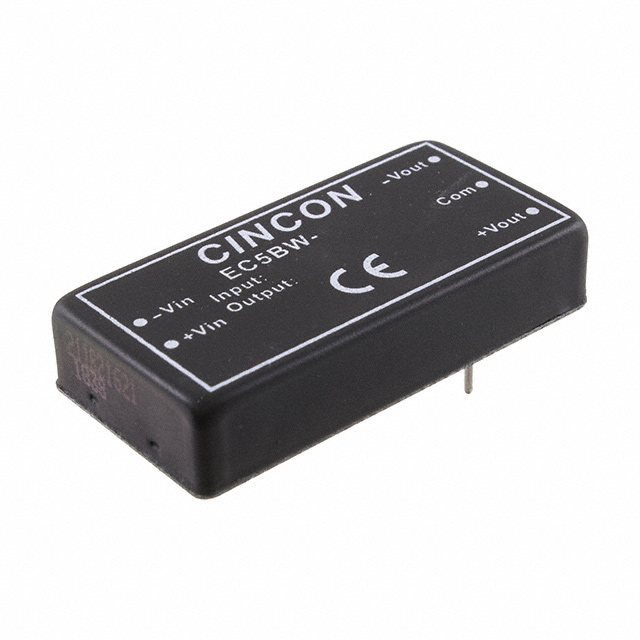

EC5BW-24S33

EC5BW-24S33 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Cincon Electronics Co. LTD. Its product description is DC DC CONVERTER 3.3V 13W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for EC5BW-24S33

• Description：DC DC CONVERTER 3.3V 13W
• Series：EC5BW (15W)
• Mfr：Cincon Electronics Co. LTD
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：4A
• Power (Watts)：13 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：OCP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：87%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE
• Standard Number：60950-1
• Grade：-
• Qualification：-
