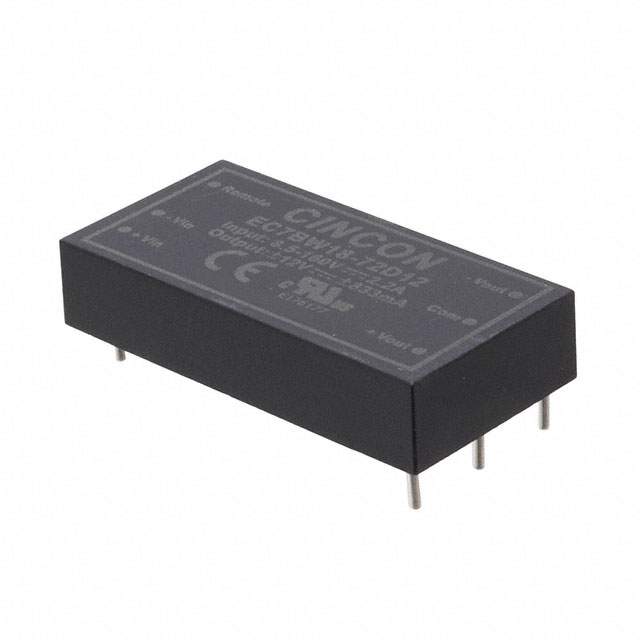

EC7BW18-72D24N

EC7BW18-72D24N is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Cincon Electronics Co. LTD. Its product description is RAILWAY LOW POWER DC-DC I/P:8.5-. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for EC7BW18-72D24N

• Description：RAILWAY LOW POWER DC-DC I/P:8.5-
• Series：EC7BW18 (20W)
• Mfr：Cincon Electronics Co. LTD
• Package：Box
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：8.5V
• Voltage - Input (Max)：160V
• Voltage - Output 1：24V
• Voltage - Output 2：-24V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：417mA, 417mA
• Power (Watts)：20 W
• Voltage - Isolation：4.2 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：90%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：CB, CE, cURus, UKCA
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for EC7BW18-72D24N
