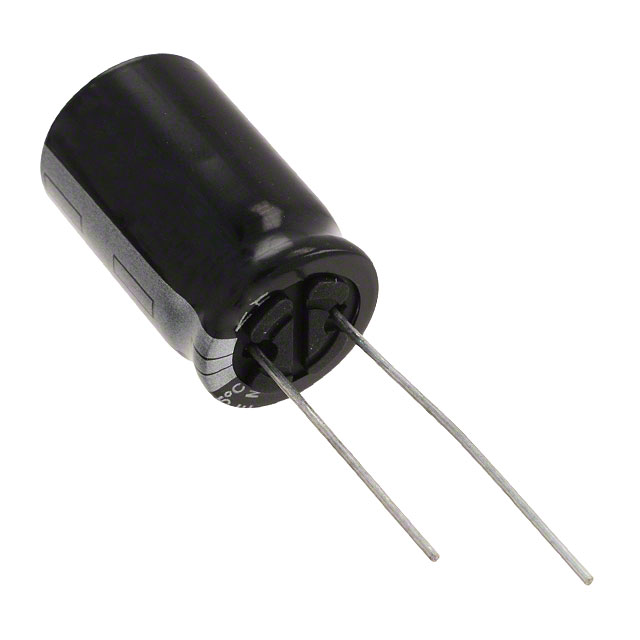

ECA-0JHG103B

ECA-0JHG103B is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CAP ALUM 10000UF 20% 6.3V RADIAL. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for ECA-0JHG103B

• Description：CAP ALUM 10000UF 20% 6.3V RADIAL
• Series：NHG-A
• Mfr：Panasonic Electronic Components
• Package：Cut Tape (CT),Tape & Box (TB)
• Capacitance：10000 µF
• Tolerance：±20%
• Voltage - Rated：6.3 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：2000 Hrs @ 105°C
• Operating Temperature：-55°C ~ 105°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：1.65 A @ 120 Hz
• Ripple Current @ High Frequency：1.898 A @ 100 kHz
• Lead Spacing：0.295" (7.50mm)
• Size / Dimension：0.630" Dia (16.00mm)
• Height - Seated (Max)：1.063" (27.00mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can

Aluminum Electrolytic Capacitors datasheet and documents for ECA-0JHG103B
