ECA-0JM101I

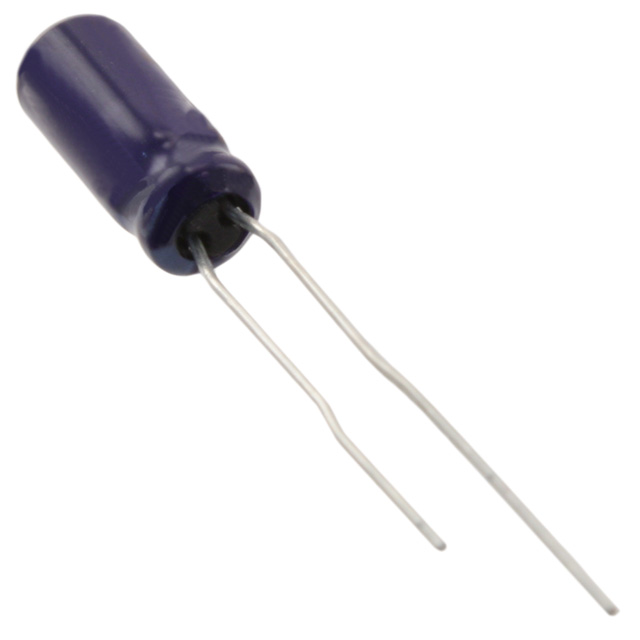

ECA-0JM101I is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CAP ALUM 100UF 20% 6.3V RADIAL. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for ECA-0JM101I

• Description：CAP ALUM 100UF 20% 6.3V RADIAL
• Series：M-A
• Mfr：Panasonic Electronic Components
• Package：Cut Tape (CT),Tape & Box (TB)
• Capacitance：100 µF
• Tolerance：±20%
• Voltage - Rated：6.3 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：2000 Hrs @ 85°C
• Operating Temperature：-40°C ~ 85°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：-
• Ripple Current @ High Frequency：221 mA @ 10 kHz
• Lead Spacing：0.098" (2.50mm)
• Size / Dimension：0.197" Dia (5.00mm)
• Height - Seated (Max)：0.472" (12.00mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can
• Impedance：-

Aluminum Electrolytic Capacitors datasheet and documents for ECA-0JM101I
