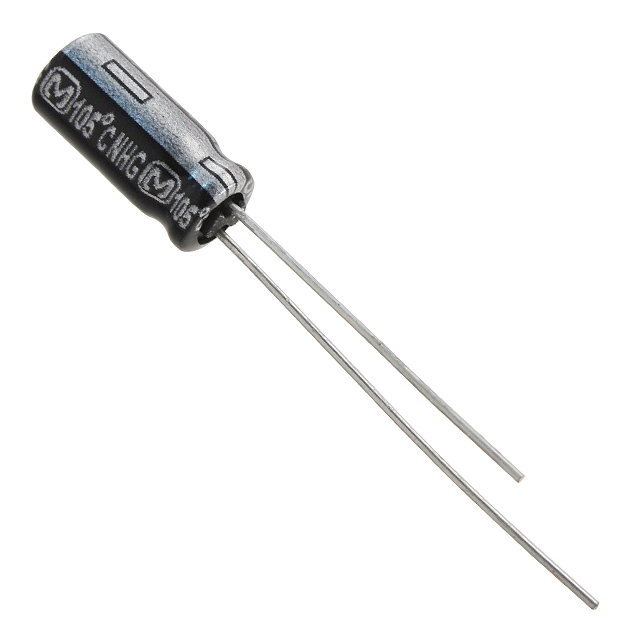

ECA-1HHG2R2I

ECA-1HHG2R2I is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CAP ALUM 2.2UF 20% 50V RADIAL TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for ECA-1HHG2R2I

• Description：CAP ALUM 2.2UF 20% 50V RADIAL TH
• Series：NHG-A
• Mfr：Panasonic Electronic Components
• Package：Cut Tape (CT),Tape & Box (TB)
• Capacitance：2.2 µF
• Tolerance：±20%
• Voltage - Rated：50 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：1000 Hrs @ 105°C
• Operating Temperature：-55°C ~ 105°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：18 mA @ 120 Hz
• Ripple Current @ High Frequency：36 mA @ 100 kHz
• Lead Spacing：0.098" (2.50mm)
• Size / Dimension：0.197" Dia (5.00mm)
• Height - Seated (Max)：0.472" (12.00mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can

Aluminum Electrolytic Capacitors datasheet and documents for ECA-1HHG2R2I
