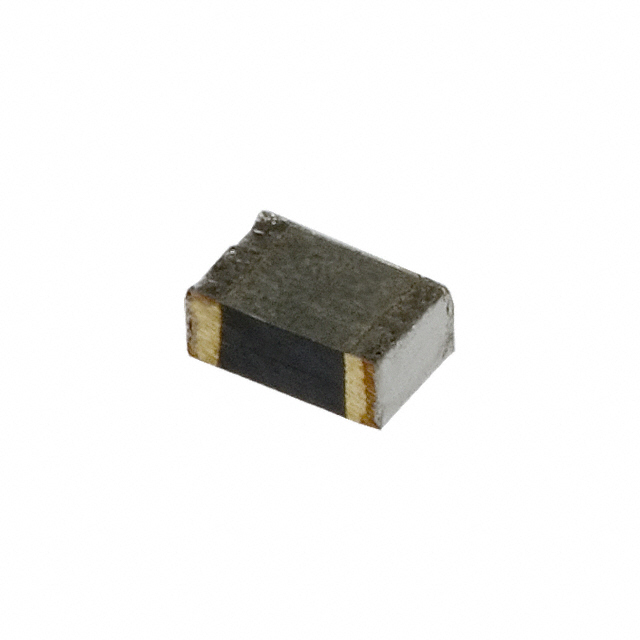

ECH-U1H331JB5

ECH-U1H331JB5 is listed in the Film Capacitors range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CAP FILM 330PF 5% 50VDC 0805. Review the specifications below when checking this part for your BOM.

Film Capacitors specifications for ECH-U1H331JB5

• Description：CAP FILM 330PF 5% 50VDC 0805
• Series：ECH-U(B)
• Mfr：Panasonic Electronic Components
• Package：Tape & Reel (TR),Cut Tape (CT)
• Capacitance：330 pF
• Tolerance：±5%
• Voltage Rating - AC：30V
• Voltage Rating - DC：50V
• Dielectric Material：Polyphenylene Sulfide (PPS), Metallized - Stacked
• Operating Temperature：-55°C ~ 125°C
• Mounting Type：Surface Mount
• Package / Case：0805 (2012 Metric)
• Size / Dimension：0.079" L x 0.049" W (2.00mm x 1.25mm)
• Height - Seated (Max)：0.039" (1.00mm)
• Termination：Solder Pads
• Lead Spacing：-
• Applications：General Purpose
• Ratings：-
• Features：-
• ESR (Equivalent Series Resistance)：-

Film Capacitors datasheet and documents for ECH-U1H331JB5
