Product Detailed Parameters
- Description：GSM 02DBI GAIN DUAL BAND PCB MOU
- Series：-
- Mfr：Siretta Ltd
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：-
- Frequency (Center/Band)：-
- Frequency Range：-
- Antenna Type：-
- Number of Bands：-
- VSWR：-
- Return Loss：-
- Gain：-
- Features：-
- Termination：-
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：-
- Height (Max)：-
- Applications：-
- Power - Max：-
Download product information
Overview

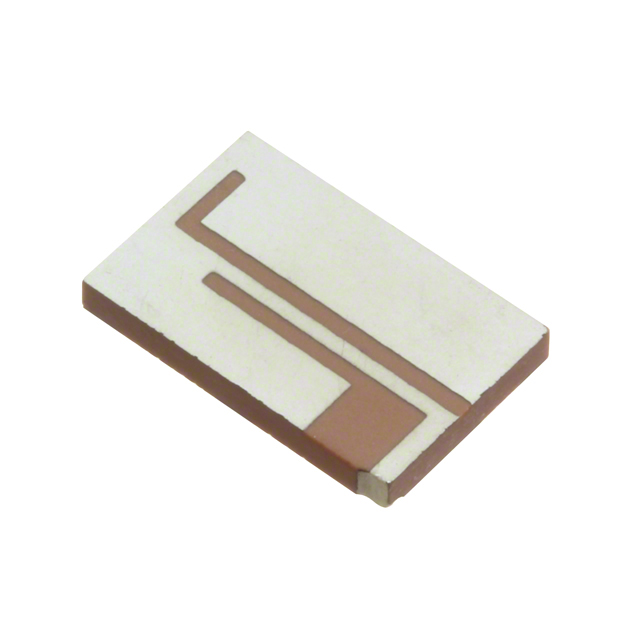

The Siretta ECHO10/X/X/S/S/7 is a dual-band GSM cellular antenna designed for internal integration. It provides 2 dBi gain and operates across GSM frequency bands. The component utilizes a PCB mount installation method with a patch antenna physical form factor. It features an SMA connector interface, ensuring compatibility with standard RF systems. This model is part of the Echo series, engineered for reliable wireless communication in compact electronic devices requiring dual-band cellular support.
Feature Summary
- Dual-band capability supporting GSM frequencies
- Internal PCB mount patch design for space-constrained applications
- SMA connector interface for standardized RF connectivity
Applications
- GSM module integration
- IoT device connectivity
- Embedded cellular communication systems
Procurement Notes
Verify the specific cable length and connector polarity configuration required for your system, as the generic suffix may denote variable attributes. Confirm that the SMA connector type matches your host board interface. Ensure the PCB mounting footprint aligns with your layout specifications before finalizing the order to avoid integration issues.
Selection Notes
Select this model when dual-band GSM coverage is required within a compact form factor. The PCB mount style suits high-volume manufacturing environments. Consider the SMA interface for ease of assembly. Evaluate the 2 dBi gain against link budget requirements to ensure adequate signal performance for the intended deployment environment.
Part Context
This component belongs to the Siretta Echo series, which specializes in internal antennas for wireless modules. The ECHO10 variant focuses on cellular applications, specifically targeting GSM standards. It complements other models in the lineup by offering a balance between size constraints and necessary RF performance for embedded communications.
Replacement Considerations
Check for updated revisions within the ECHO10 series. Verify if newer variants offer improved gain or different connector options. Cross-reference with Siretta's official substitution guide to ensure electrical compatibility and mechanical fit for direct replacement scenarios.
