ECHO11/0.1M/IPEX/S/S/12

$11.31

Description：RF ANT 2.4GHZ PCB TRACE IPEX SMD
Series：ECHO 11
Mfr：Siretta Ltd
Package：Bulk

SKU:5c5ad6f5d8cb Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 2.4GHZ PCB TRACE IPEX SMD
Series：ECHO 11
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：802.15.4, Bluetooth, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：PCB Trace
Number of Bands：1
VSWR：1.6
Return Loss：-
Gain：2.6dBi
Features：-
Termination：U.FL (UMCC), I-PEX MHF1
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.039" (1.00mm)
Applications：Bluetooth, WLAN, Zigbee™
Power - Max：-

Download product information

ECHO11/0.1M/IPEX/S/S/12

Overview

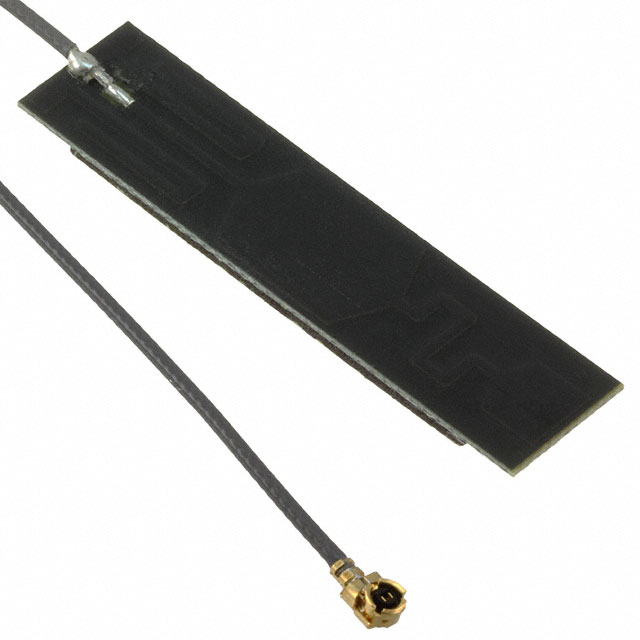

The Siretta ECHO11/0.1M/IPEX/S/S/12 is a surface-mount PCB trace antenna designed for embedded wireless applications. It operates within the 2.4GHz to 2.5GHz frequency range, supporting protocols including Bluetooth, WLAN, and Zigbee. The component features a 100mm coaxial cable terminated with an IPEX (U.FL compatible) connector. Key electrical specifications include a gain of 2.6dBi, a VSWR of 1.6, and linear polarization. The physical dimensions are 1.00mm in maximum height, suitable for compact integration.

Feature Summary

Integrated 1/4 wave dipole radiating element optimized for embedded PCB installations
Pre-terminated with a 100mm coaxial cable and IPEX connector for simplified assembly
Surface mount design with low profile construction for space-constrained devices

Applications

Bluetooth Low Energy (BLE) modules
Wireless Local Area Network (WLAN) devices
Zigbee sensor nodes and controllers

Procurement Notes

Verify that the IPEX connector polarity and mating interface match the host device's RF port. Confirm that the operating temperature range aligns with the environmental requirements of the final product. Ensure compliance with regional radio frequency regulations for the 2.4GHz ISM band before deployment.

Selection Notes

Select this model when a compact, low-profile antenna is required for 2.4GHz ISM band applications. The integrated cable length simplifies routing within enclosed chassis. Consider the 2.6dBi gain and 1.6 VSWR performance metrics for link budget calculations in dense wireless environments.

Part Context

This component belongs to the Siretta ECHO series of PCB antennas. It is specifically engineered for high-volume embedded manufacturing where consistent radiation patterns and reliable solder joint integrity are critical. The part number suffixes indicate specific cable lengths and connector types within the product family.

Replacement Considerations

Direct substitutes must maintain identical 2.4GHz-2.5GHz operation, IPEX connectivity, and comparable gain specifications. Verify mechanical footprint compatibility and impedance matching (typically 50 Ohms) to ensure seamless integration without redesigning the RF front-end circuitry.
