Product Detailed Parameters
- Description：RF ANT 800/868MHZ PCB U.FL SMD
- Series：ECHO 14
- Mfr：Siretta Ltd
- Package：Bulk
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：800MHz, 868MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz
- Frequency Range：-
- Antenna Type：PCB Trace
- Number of Bands：7
- VSWR：3.2
- Return Loss：-
- Gain：0dBi
- Features：-
- Termination：U.FL (UMCC), I-PEX MHF1
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.039" (1.00mm)
- Applications：GPRS, GSM, UMTS
- Power - Max：-
Download product information
Overview

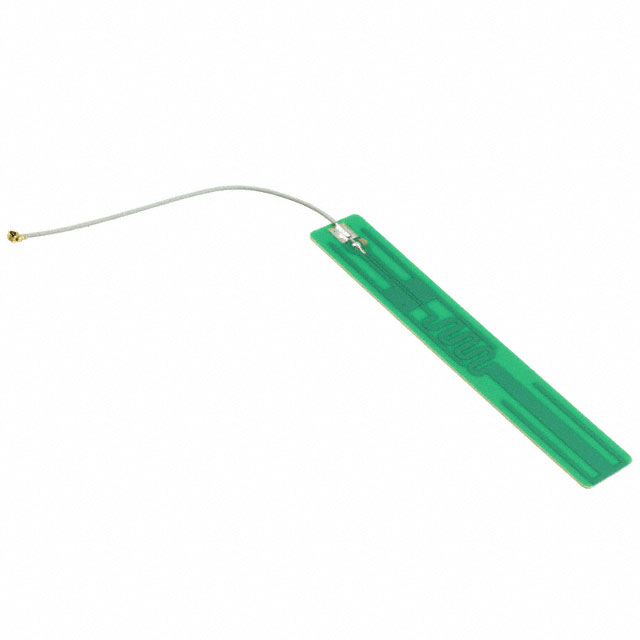

The Siretta ECHO14/0.1M/UFL/S/S/15 is a compact, multi-band PCB trace antenna designed for internal wireless connectivity in cellular applications. It supports GSM, DCS, PCS, UMTS, LTE, and dual-band Wi-Fi frequencies ranging from 800MHz to 2.6GHz. The unit features a 0dBi gain omnidirectional radiation pattern with a 100mm cable length terminating in a female U.FL connector. Constructed as an embedded surface-mount component, it facilitates integration into mobile devices requiring broad network compatibility.
Feature Summary
- Supports multiple cellular standards including GSM, UMTS, LTE, and dual-band Wi-Fi
- Compact embedded design suitable for space-constrained mobile applications
- Omnidirectional radiation pattern ensures consistent signal coverage
Applications
- Smartphones and mobile handsets
- Tablets and portable computing devices
- IoT modules requiring cellular and Wi-Fi connectivity
Procurement Notes
Verify the specific frequency band requirements against the official datasheet to ensure compatibility with target network standards. Confirm that the U.FL connector polarity matches the host device interface. Check for RoHS compliance status and environmental operating limits before finalizing procurement specifications.
Selection Notes
Select this model when a low-profile, multi-band solution is required for internal device mounting. Ensure the application environment allows for surface-mount installation and that the 100mm cable length accommodates the distance between the RF transceiver and the antenna placement area within the enclosure.
Part Context
This component belongs to the Siretta Echo 14 series of embedded antennas. The series focuses on providing versatile wireless connectivity options for modern mobile electronics. The specific part number denotes the cable length, connector type, and mounting configuration unique to this variant.
Replacement Considerations
Consider the ECHO14/0.2M/UFL/S/S/15 if a longer 200mm cable is required. Verify mechanical footprint and electrical performance equivalence before substituting with other multi-band PCB antennas.
