Product Detailed Parameters
- Description：RF ANT 800/868MHZ PCB U.FL SMD
- Series：ECHO 14
- Mfr：Siretta Ltd
- Package：Bulk
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：800MHz, 868MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz
- Frequency Range：-
- Antenna Type：PCB Trace
- Number of Bands：7
- VSWR：3.2
- Return Loss：-
- Gain：0dBi
- Features：-
- Termination：U.FL (UMCC), I-PEX MHF1
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.039" (1.00mm)
- Applications：GPRS, GSM, UMTS
- Power - Max：-
Download product information
Overview

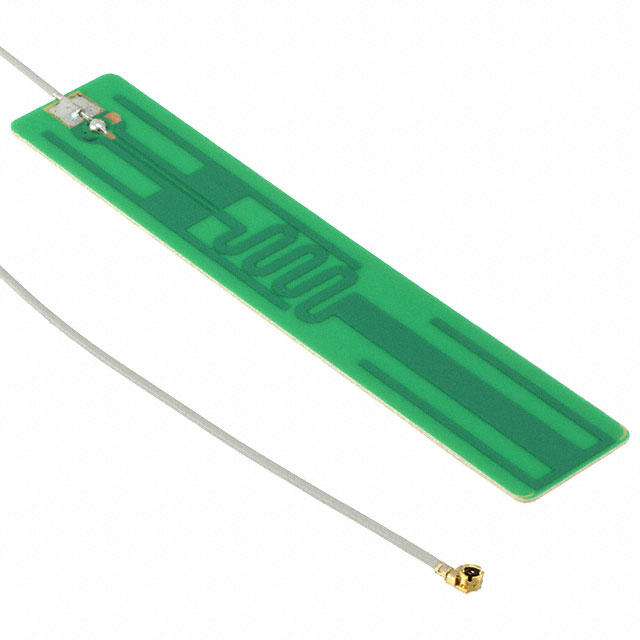

The Siretta ECHO14/0.2M/UFL/S/S/15 is a multi-band PCB trace antenna designed for embedded wireless applications. It operates across 2G, 3G, 4G, 5G, GSM, ISM, LTE, and dual-band Wi-Fi frequencies. The unit features a 200mm cable length terminating in a U.FL connector. Key electrical specifications include a maximum gain of 2.84dBi and a bandwidth covering the 5.8GHz range. The component utilizes a vertical polarization orientation and is constructed as a compact surface-mount device suitable for integration into various communication modules.
Feature Summary
- Supports multiple cellular and Wi-Fi frequency bands including 5G and 4G
- Compact PCB trace design optimized for embedded installations
- Integrated 200mm cable with U.FL connector interface
Applications
- Embedded IoT devices requiring multi-band connectivity
- Industrial communication modules supporting LTE and 5G
- Wireless gateways utilizing dual-band Wi-Fi and cellular data
Procurement Notes
Verify the specific frequency band configuration against the official Siretta datasheet to ensure compatibility with target network standards. Confirm that the U.FL connector polarity matches the host device interface. Check RoHS compliance status and environmental ratings for the intended operating conditions. Ensure the 200mm cable length accommodates the mechanical layout constraints of the final assembly without signal degradation.
Selection Notes
Select this component when a single antenna solution must support diverse protocols such as 5G, 4G, and Wi-Fi simultaneously. The vertical polarization and compact form factor make it suitable for space-constrained enclosures. Consider the 2.84dBi gain performance relative to required link budgets. Evaluate the U.FL connector durability and mating cycle requirements against the application's maintenance needs.
Part Context
This part belongs to the Siretta Echo series of RF antennas, which are engineered for reliable wireless transmission in compact electronic devices. The Echo series typically offers integrated solutions that replace discrete antenna components, simplifying PCB layout and reducing overall system size while maintaining regulatory compliance for global markets.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing designs before considering alternative multi-band PCB antennas from other manufacturers.
