ECHO19/0.1M/UFL/S/S/17

$14.24

Description：RF ANT 1.575GHZ CER PATCH U.FL
Series：ECHO 19
Mfr：Siretta Ltd
Package：Bulk

SKU:1fb23ec03998 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ECHO19/0.1M/UFL/S/S/17 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Siretta Ltd. Its product description is RF ANT 1.575GHZ CER PATCH U.FL. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ECHO19/0.1M/UFL/S/S/17

Description：RF ANT 1.575GHZ CER PATCH U.FL
Series：ECHO 19
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.575GHz
Frequency Range：-
Antenna Type：Ceramic Patch
Number of Bands：1
VSWR：1.8
Return Loss：-
Gain：16dB
Features：-
Termination：U.FL (UMCC), I-PEX MHF1
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.256" (6.50mm)
Applications：GPS
Power - Max：-

Antennas RF datasheet and documents for ECHO19/0.1M/UFL/S/S/17

ECHO19/0.1M/UFL/S/S/17

Antennas RF Overview

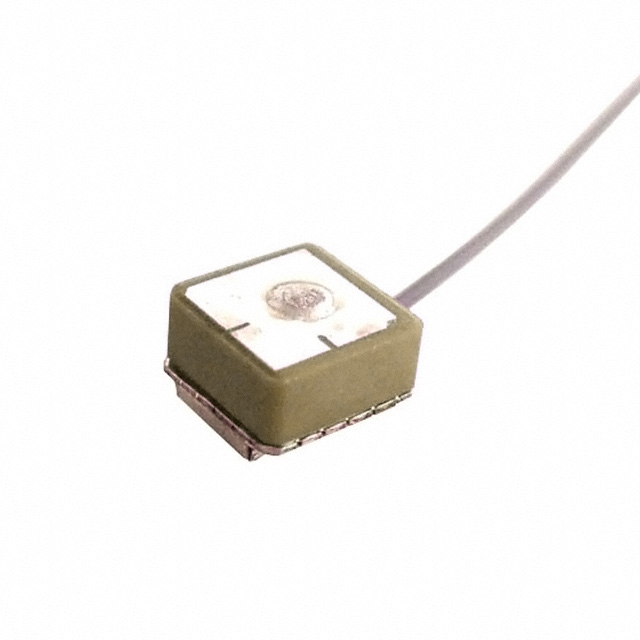

The Siretta ECHO19/0.1M/UFL/S/S/17 is a compact embedded active GPS ceramic patch antenna designed for satellite positioning applications where space is limited. It operates at the L1 frequency of 1.575GHz and features a surface mount PCB trace design with an integrated Low Noise Amplifier (LNA). The unit measures 10 x 10 x 6.7 mm and includes a 100mm cable terminating in a U.FL (I-PEX MHF1) connector.
