ECHO1A/0.1M/IPEX/S/S/11

Antennas RF Overview

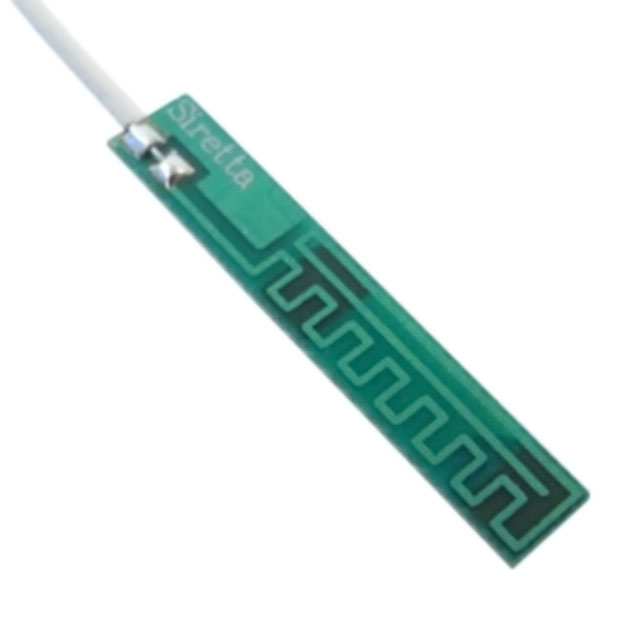

The Siretta ECHO1A/0.1M/IPEX/S/S/11 is a compact PCB embedded cellular antenna designed for GSM, GPRS, and ISM applications. It operates within a frequency range of 824 MHz to 2.17 GHz, covering bands including 850/868 MHz, 900/915 MHz, 1.8 GHz, and 2.1 GHz. The component features a flexible dipole design with linear polarization and a 50 Ohm impedance. It includes a 150 mm coaxial cable terminating in an I-PEX connector. Physical dimensions are 35 mm length, 6 mm width, and 0.6 mm height, suitable for surface mount installation.

Antennas RF Feature Summary

• Compact flexible PCB trace design optimized for space-constrained embedded devices
• Integrated 150 mm coaxial cable with I-PEX interface for direct module connection
• Multi-band coverage supporting GSM, GPRS, and ISM protocols across UHF and lower UHF ranges

Antennas RF Applications

• GSM and GPRS mobile communication modules
• ISM band industrial sensor nodes
• Embedded IoT devices requiring cellular connectivity

Antennas RF Procurement Notes

Verify the specific cable length and connector variant against the official datasheet before procurement. Confirm that the I-PEX mating interface matches the target RF module. Ensure the operating temperature range of -40 C to +85 C aligns with the intended environmental conditions. Cross-reference the manufacturer part number to avoid confusion with similar series variants.

Antennas RF Selection Notes

Select this model when a low-profile, multi-band cellular solution is required for GSM and ISM applications. The integrated cable simplifies assembly compared to discrete antennas. Consider the 0.6 mm height constraint for thin enclosures. Verify impedance matching at the target frequencies to ensure optimal signal transmission efficiency.

Antennas RF Part Context

This component belongs to the Siretta ECHO series of embedded antennas. It is categorized under Cellular Antennas for GSM, LTE, and 2G/3G/4G/5G technologies. The product type is classified as a PCB antenna with a flexible form factor. It serves as a specialized RF solution for integrating wireless capabilities into compact electronic hardware.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer catalog for alternative models within the ECHO series or other Siretta cellular antenna lines if this specific configuration is unavailable.
