ECHO1A/0.2M/GSC/S/S/11

Antennas RF Overview

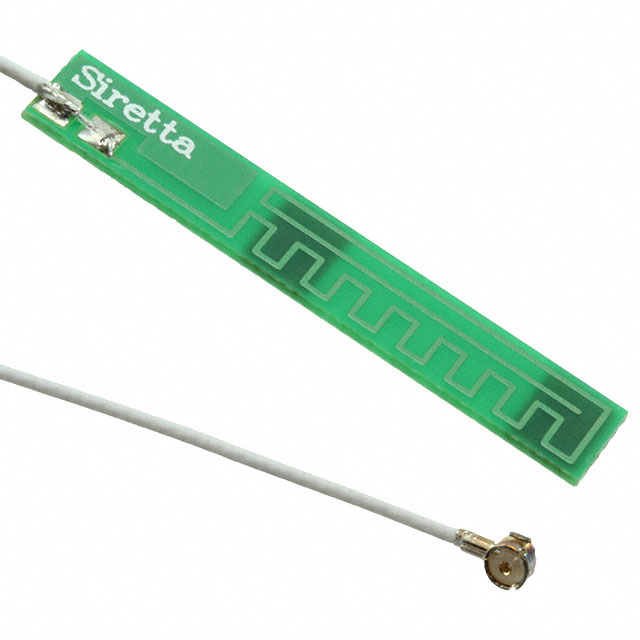

The ECHO1A/0.2M/GSC/S/S/11 is a compact, flexible PCB embedded cellular antenna manufactured by Siretta Ltd. It operates within the frequency range of 824 MHz to 2.17 GHz, supporting GSM, GPRS, and UMTS protocols. The component features a dipole electrical type with linear polarization and a nominal impedance of 50 Ohms. It utilizes a GSC connector for termination and is designed for surface mount installation. Physical dimensions are 35 mm in length, 6 mm in width, and 0.6 mm in height. The unit includes a 200 mm coaxial cable.

Antennas RF Feature Summary

• Compact flexible PCB trace design suitable for space-constrained embedded applications
• Integrated low-profile form factor with minimal mounting footprint
• Supports multiple cellular communication standards including GSM, GPRS, and UMTS

Antennas RF Applications

• GSM mobile devices
• GPRS data modules
• UMTS cellular equipment
• IoT connectivity hardware

Antennas RF Procurement Notes

Verify the specific connector type (GSC) against the target device interface before procurement. Confirm that the 200 mm cable length aligns with the mechanical layout requirements. Ensure the operating temperature range of -40 C to +85 C meets the environmental specifications of the intended deployment scenario.

Antennas RF Selection Notes

Select this model when a low-profile, multi-band cellular solution is required for GSM, GPRS, or UMTS networks. The integrated cable simplifies routing compared to direct feed designs. Consider the physical constraints of the enclosure to accommodate the 35 mm antenna body and the 200 mm cable extension during the mechanical design phase.

Antennas RF Part Context

This component belongs to the ECHO 1A series of antennas from Siretta Ltd. The series focuses on providing versatile, compact solutions for various wireless communication protocols. The ECHO1A variant specifically targets cellular bands, offering a balance between performance and size for modern portable electronics.

Antennas RF Replacement Considerations

ECHO1A/0.15M/IPEX/S/S/11 offers similar functionality but uses an I-PEX connector and has a 150 mm cable. ECHO1A/0.1M/IPEX/S/S/11 provides a shorter 100 mm cable option with an I-PEX connector. Verify connector compatibility and cable length requirements when evaluating these alternatives.
