ECHO1A/0.2M/IPEX/S/S/11

$6.32

Description：RF ANT850/868MHZ PCB U.F.L SMD
Series：ECHO 1A
Mfr：Siretta Ltd
Package：Bulk

SKU:65cf569acc73 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT850/868MHZ PCB U.F.L SMD
Series：ECHO 1A
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：Cellular
Frequency Group：UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range：-
Antenna Type：PCB Trace
Number of Bands：1
VSWR：2
Return Loss：-
Gain：3.6dBi
Features：-
Termination：U.FL (UMCC), I-PEX MHF1
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.024" (0.60mm)
Applications：GPRS, GSM, UMTS
Power - Max：-

Download product information

ECHO1A/0.2M/IPEX/S/S/11

Overview

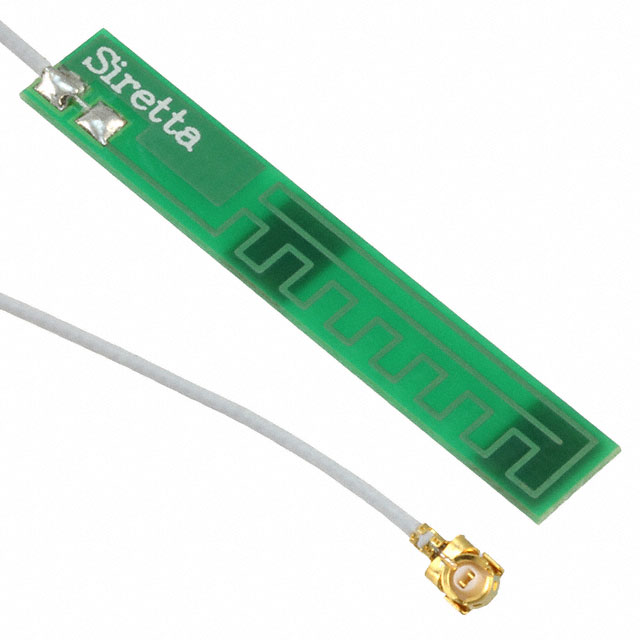

The Siretta ECHO1A/0.2M/IPEX/S/S/11 is a compact PCB embedded cellular antenna designed for GSM, GPRS, and ISM applications. It operates within frequency ranges of 824 MHz to 960 MHz and 1.71 GHz to 2.17 GHz, supporting 2G, 3G, and 4G protocols. The component features a flexible dipole design with linear polarization and a 50 Ohm impedance. It includes a 200 mm coaxial cable terminating in an I-PEX connector. Physical dimensions are 35 mm in length, 6 mm in width, and 0.6 mm in height. The unit functions reliably between -40°C and +85°C.

Feature Summary

Compact flexible PCB trace design suitable for space-constrained embedded installations
Integrated I-PEX connector interface with attached coaxial cable for simplified routing
Multi-band capability covering GSM, GPRS, and ISM frequency spectrums

Applications

GSM and GPRS mobile communication modules
3G and 4G LTE IoT devices
ISM band industrial sensors

Procurement Notes

Verify the specific part number suffix against official Siretta documentation to confirm cable length and connector type accuracy. Ensure compatibility with the target device's RF front-end requirements before procurement. Cross-reference the manufacturer datasheet for precise electrical performance metrics and environmental operating limits.

Selection Notes

Select this model when a low-profile, flexible antenna solution is required for cellular or ISM applications. The integrated cable simplifies assembly compared to direct-mount variants. Confirm that the I-PEX connector matches the host board layout and that the 200 mm cable length accommodates the enclosure geometry without signal degradation.

Part Context

This component belongs to the Siretta Echo 1A series of compact cellular antennas. The series provides embedded solutions for various wireless standards. The specific model variant denotes the physical dimensions, cable length, and connector interface configuration within the product family.
