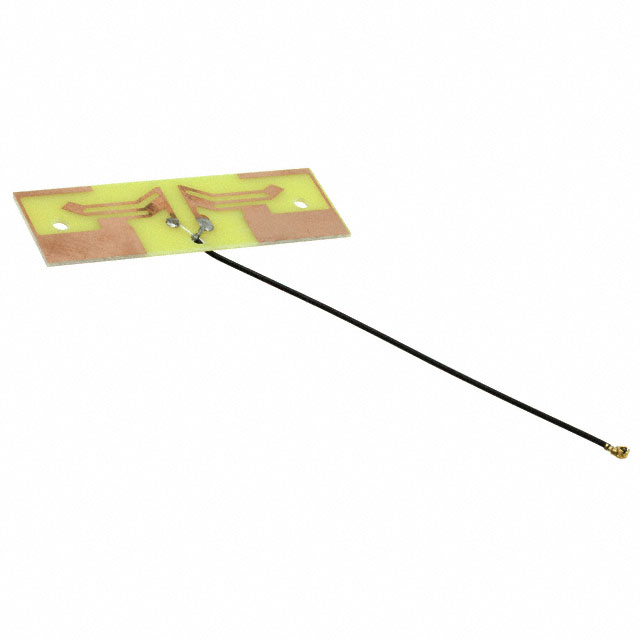

ECHO2/0.1M/UFL/S/S/1

$9.61

Description：RF ANT 850/868MHZ PCB TRACE CAB
Series：ECHO 2
Mfr：Siretta Ltd
Package：Bulk

SKU:dc4afecb567e Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 850/868MHZ PCB TRACE CAB
Series：ECHO 2
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：-
Frequency Group：Wide Band
Frequency (Center/Band)：850MHz, 868MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz
Frequency Range：-
Antenna Type：PCB Trace
Number of Bands：7
VSWR：1.5
Return Loss：-
Gain：2dBi
Features：Cable - 100mm
Termination：U.FL (UMCC), I-PEX MHF1
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.039" (1.00mm)
Applications：-
Power - Max：-

Download product information

ECHO2/0.1M/UFL/S/S/1

Overview

The Siretta ECHO2/0.1M/UFL/S/S/1 is a multi-band PCB trace antenna designed for embedded wireless applications. It operates across seven frequency bands: 850MHz, 868MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, and 2.4GHz. The component features a gain of 2dBi and a VSWR of 1.5. It includes a 100mm cable terminated with a U.FL connector and utilizes adhesive mounting. The physical dimensions are 75x25mm with a maximum height of 1.00mm.

Feature Summary

Supports multiple cellular and ISM frequency bands including GSM, LTE, and Wi-Fi
Ground plane independent design for flexible integration
Compact T-bar PCB trace form factor with adhesive installation

Applications

GSM/GPRS modules
3G/4G/LTE Cat M/NB IoT devices
Wi-Fi enabled embedded systems
UMTS and NR connectivity solutions

Procurement Notes

Verify the specific connector type and cable length configuration against the official datasheet before ordering. Confirm that the adhesive mounting method aligns with the target assembly process. Ensure the operating frequency range matches the intended application requirements to guarantee optimal performance.

Selection Notes

Choose this model for applications requiring broad band coverage from sub-GHz to 2.4GHz in a low-profile format. The ground plane independence simplifies RF layout constraints. Consider the 100mm cable length for separation between the antenna and the main circuit board.

Part Context

This part belongs to the Siretta ECHO 2 series, which offers various configurations for different frequency bands and connector types. It is distinct from the ECHO 11 series, which focuses on single-band 2.4GHz operations. The ECHO 2 series targets multi-standard wireless communication needs.

Replacement Considerations

Check for ECHO2/0.2M/UFL/S/S/1 if a longer 200mm cable is required. Verify compatibility with other ECHO 2 variants that may share similar electrical characteristics but differ in connector or mounting options.
