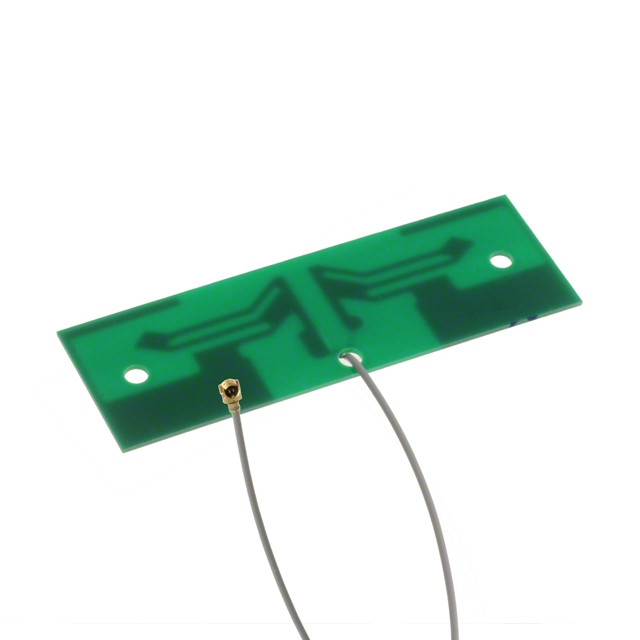

ECHO2/0.2M/UFL/S/S/1

$16.34

Description：RF ANT 850/868MHZ PCB TRACE CAB
Series：ECHO 2
Mfr：Siretta Ltd
Package：Bulk

SKU:8b3fedb74a3c Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 850/868MHZ PCB TRACE CAB
Series：ECHO 2
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：-
Frequency Group：Wide Band
Frequency (Center/Band)：850MHz, 868MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz
Frequency Range：-
Antenna Type：PCB Trace
Number of Bands：7
VSWR：1.5
Return Loss：-
Gain：2dBi
Features：Cable - 200mm
Termination：U.FL (UMCC), I-PEX MHF1
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.039" (1.00mm)
Applications：-
Power - Max：-

Download product information

ECHO2/0.2M/UFL/S/S/1

Overview

The Siretta ECHO2/0.2M/UFL/S/S/1 is a multi-band PCB trace antenna designed for wireless communication applications. It operates across frequency ranges of 824MHz to 960MHz and 1.71GHz to 1.99GHz, supporting GSM, GPRS, UMTS, LTE, and Wi-Fi standards. The component features a 2dBi gain and a VSWR of 2. It includes a 200mm cable with U.FL (UMCC) or I-PEX MHF1 termination. The antenna utilizes adhesive mounting and has a maximum height of 0.039 inches.

Feature Summary

Multi-band support for cellular and ISM frequencies
Integrated 200mm cable with U.FL connector
Adhesive mounting for PCB integration

Applications

GSM/GPRS modules
UMTS/LTE devices
Wi-Fi enabled hardware

Procurement Notes

Verify the specific cable length and connector type against project requirements before ordering. Confirm that the adhesive mounting method aligns with the assembly process. Ensure the operating frequency range covers all necessary bands for the target application. Check RoHS compliance status if required by regional regulations.

Selection Notes

Select this model when a low-profile PCB antenna with an integrated short cable is needed. It is suitable for designs requiring U.FL connectivity without additional board space for connectors. Consider the 2dBi gain and VSWR performance for link budget calculations. Verify compatibility with the host device's RF front-end impedance.

Part Context

This part belongs to the Siretta ECHO 2 series, which offers various configurations of PCB trace antennas. The series provides options with different cable lengths and connector types to suit diverse enclosure constraints. It is designed for compact wireless modules where space efficiency is critical.

Replacement Considerations

Direct substitutes within the same series include ECHO2/0.1M/UFL/S/S/1 for shorter cable needs. For different connector types, consider variants with SMA or other interfaces. Ensure any replacement maintains the same frequency coverage and mounting style.
