ECHO26/0.1M/IPEX/S/S/26

Antennas RF Overview

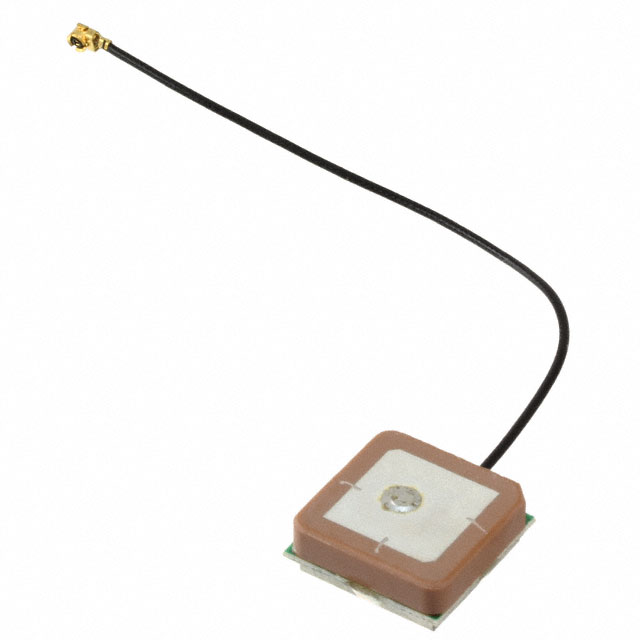

The Siretta ECHO26/0.1M/IPEX/S/S/26 is a GPS internal active antenna designed for navigation applications. It operates at a center frequency of 1.575GHz, supporting the L1 band. The component features a PCB trace design with integrated Low Noise Amplifier (LNA) functionality to enhance signal reception. It utilizes an I-PEX MHF1 connector interface and includes a 100mm cable length for flexible integration into compact electronic devices requiring precise positioning capabilities.

Antennas RF Feature Summary

• Integrated Low Noise Amplifier (LNA) for improved signal sensitivity
• Compact embedded PCB trace design suitable for space-constrained applications
• Active antenna configuration optimized for GPS L1 band navigation

Antennas RF Applications

• GPS navigation systems
• Automotive telematics units
• Portable tracking devices
• IoT location modules

Antennas RF Procurement Notes

Verify the specific suffix codes against official Siretta documentation to ensure correct cable length and connector type compatibility. Confirm that the active LNA power requirements align with the host system's voltage supply before procurement. Cross-reference the datasheet revision date to ensure compliance with current manufacturing standards.

Antennas RF Selection Notes

Select this model when high sensitivity is required for indoor or urban canyon environments due to its active LNA design. Ensure the host device provides the necessary DC bias voltage for the internal amplifier. Compare physical dimensions against available board space, as the embedded trace design requires specific mounting considerations relative to ground planes.

Antennas RF Part Context

This component belongs to the Siretta Echo series, which specializes in embedded RF antennas for mobile and industrial applications. The Echo line typically offers compact form factors with integrated amplification, distinguishing it from passive antenna variants. It serves as a critical interface between satellite signals and receiver circuitry in modern navigation hardware.

Antennas RF Replacement Considerations

Direct substitutes may include other Siretta active GPS antennas with identical 1.575GHz specifications and LNA integration. Verify connector polarity and cable length equivalence. Passive alternatives require significant redesign of the RF front-end to compensate for the lack of built-in amplification.
