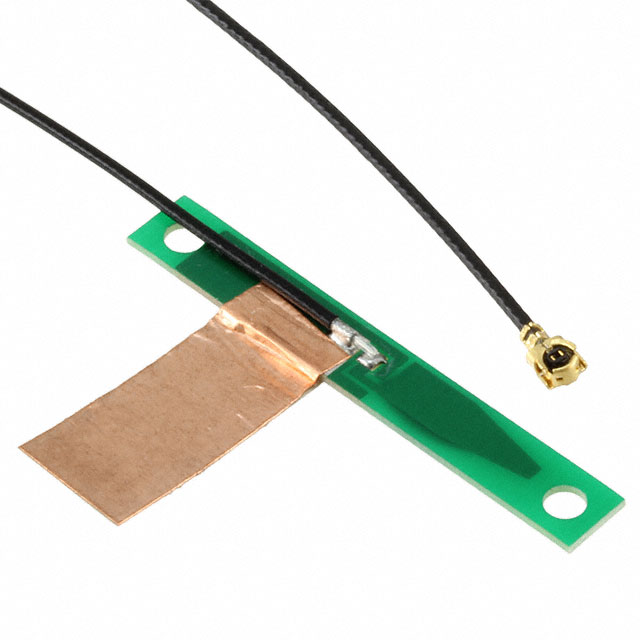

ECHO28/0.5M/IPEX/S/S/30

Description：RF ANT 2.4GHZ PCB TRACE IPEX SMD
Series：ECHO 28
Mfr：Siretta Ltd
Package：Bulk

SKU:154eb1843358 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 2.4GHZ PCB TRACE IPEX SMD
Series：ECHO 28
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：802.15.4, Bluetooth, WiFi
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：PCB Trace
Number of Bands：1
VSWR：1.92
Return Loss：-
Gain：2dBi
Features：-
Termination：U.FL (UMCC), I-PEX MHF1
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.004" (0.10mm)
Applications：Bluetooth, WLAN, Zigbee™
Power - Max：-

Download product information

ECHO28/0.5M/IPEX/S/S/30

Overview

The Siretta ECHO28/0.5M/IPEX/S/S/30 is a dual-band WiFi antenna designed for wireless communication applications. It operates within the 2.4GHz to 2.5GHz and 5.15GHz to 5.8GHz frequency ranges, supporting standard WiFi protocols. The unit features a PCB trace antenna element with an IPEX connector interface. It provides a gain of 2dBi and includes a 500mm cable length for flexible installation.

Feature Summary

Dual-band operation covering 2.4GHz and 5GHz WiFi frequencies
PCB trace antenna design for compact integration
IPEX connector interface for direct board connection

Applications

WiFi router and access point modules
Wireless IoT device connectivity
Embedded network interface cards

Procurement Notes

Verify the specific IPEX connector generation compatibility with the host board footprint before procurement. Confirm that the 500mm cable length meets the mechanical clearance requirements of the final enclosure design. Ensure the operating temperature range aligns with the intended deployment environment specifications.

Selection Notes

Select this model when dual-band WiFi support is required in a low-profile form factor. The PCB trace design offers space efficiency compared to whip antennas. Consider the IPEX interface if the system design utilizes matching U.FL connectors on the main circuit board for signal transmission.

Part Context

This component belongs to the Siretta Echo series, which specializes in compact RF solutions for wireless devices. The series emphasizes small form factors suitable for modern portable electronics and embedded systems requiring reliable wireless connectivity without significant spatial overhead.
