ECHO30/0.1M/IPEX/S/S/26 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Siretta Ltd. Its product description is RF ANT 892MHZ/2.1GHZ PCB TRACE. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for ECHO30/0.1M/IPEX/S/S/26
- Description：RF ANT 892MHZ/2.1GHZ PCB TRACE
- Series：ECHO 30
- Mfr：Siretta Ltd
- Package：Bulk
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：892MHz, 2.1GHz
- Frequency Range：-
- Antenna Type：PCB Trace
- Number of Bands：2
- VSWR：3
- Return Loss：-
- Gain：2dBi
- Features：-
- Termination：U.FL (UMCC), I-PEX MHF1
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.047" (1.20mm)
- Applications：GPRS, GSM
- Power - Max：-
Antennas RF datasheet and documents for ECHO30/0.1M/IPEX/S/S/26
Antennas RF Overview

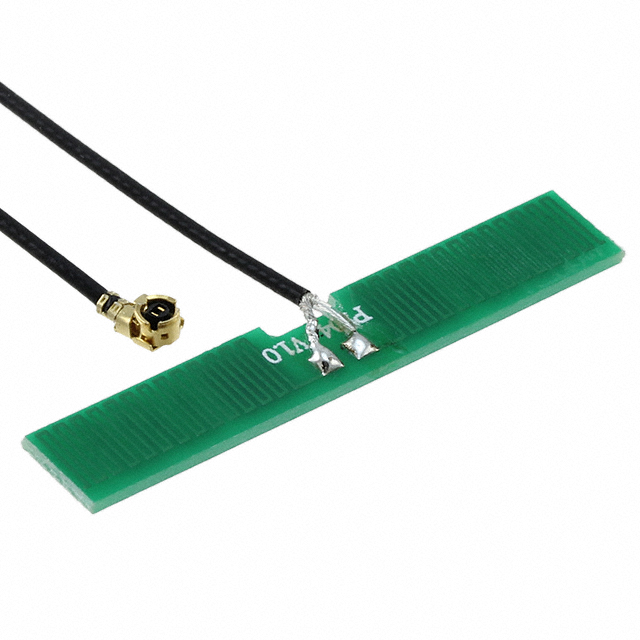

The Siretta ECHO30/0.1M/IPEX/S/S/26 is a T-shaped embedded PCB antenna designed for GSM and 3G applications. It operates within the frequency ranges of 824 MHz to 960 MHz and 1.92 GHz to 2.17 GHz. The component features a gain of 2dBi and an input impedance of 50 ohms. It utilizes a U.FL (I-PEX) connector with a cable length of 100 mm. The antenna is constructed as a PCB trace type, suitable for surface mounting.
Antennas RF Feature Summary
- T-shaped embedded design optimized for compact integration
- Dual-band support for GSM and 3G protocols
- Integrated low-profile PCB trace structure
Antennas RF Applications
- GSM module integration
- 3G wireless communication devices
- Embedded IoT hardware
Antennas RF Procurement Notes
Verify the specific I-PEX connector generation compatibility with your RF circuit board layout. Confirm that the 100 mm coaxial cable length meets the spatial constraints of the enclosure. Ensure the operating frequency bands align precisely with regional regulatory requirements for GSM and 3G services.
Antennas RF Selection Notes
Select this model when a low-profile, T-shaped form factor is required for GSM and 3G connectivity. The 2dBi gain provides standard performance for embedded applications. The U.FL connector interface requires matching receptacles on the host PCB. Consider the 100 mm lead length for routing flexibility within the device chassis.
Antennas RF Part Context
This component belongs to the Siretta Echo series of embedded antennas. It is specifically engineered for mobile communication modules requiring reliable GSM and 3G signal transmission. The design prioritizes minimal height profile while maintaining effective radiation patterns for cellular frequencies.
Antennas RF Replacement Considerations
Direct substitutes must match the 824-960 MHz and 1.92-2.17 GHz dual-band specifications. Verify identical U.FL connector polarity and 100 mm cable length. Ensure comparable 2dBi gain and 50-ohm impedance characteristics for seamless integration.
