ECHO31/0.5M/SMAM/S/S/17

$16.58

Description：DUAL BAND 2.4/5GHZ WIFI ANTENNA
Series：Echo 31
Mfr：Siretta Ltd
Package：Bulk

SKU:b67b22bec405 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ECHO31/0.5M/SMAM/S/S/17 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Siretta Ltd. Its product description is DUAL BAND 2.4/5GHZ WIFI ANTENNA. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ECHO31/0.5M/SMAM/S/S/17

Description：DUAL BAND 2.4/5GHZ WIFI ANTENNA
Series：Echo 31
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：802.15.4, Bluetooth, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.4GHz, 5GHz
Frequency Range：-
Antenna Type：PCB Trace
Number of Bands：2
VSWR：2.8
Return Loss：-
Gain：3dBi
Features：-
Termination：SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.031" (0.80mm)
Applications：Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™
Power - Max：50 W

Antennas RF datasheet and documents for ECHO31/0.5M/SMAM/S/S/17

ECHO31/0.5M/SMAM/S/S/17

Antennas RF Overview

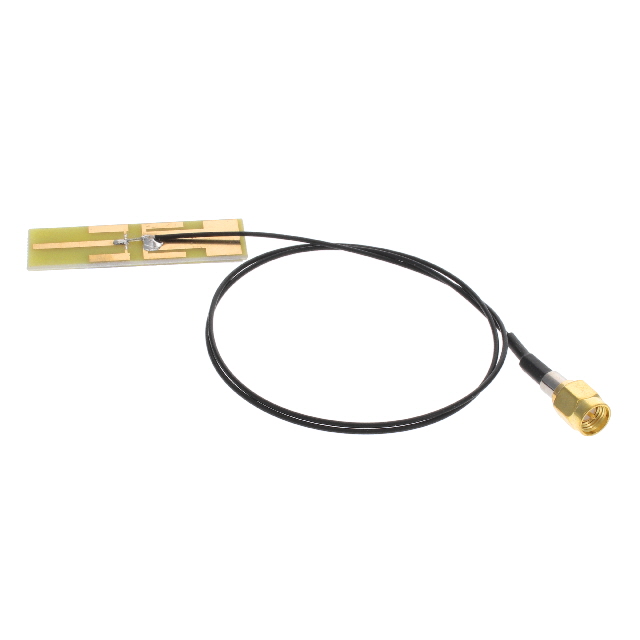

The Siretta ECHO31/0.5M/SMAM/S/S/17 is a dual-band PCB antenna designed for WiFi, WLAN, Bluetooth, Zigbee, and ISM applications. It operates within the 2.4GHz to 5.58GHz frequency range, providing 3dBi gain. The unit features an SMA male connector with a 50-ohm impedance and supports up to 50W power handling. A 0.5-meter cable connects the PCB trace to the connector, with a maximum VSWR of 2.8.

Antennas RF Feature Summary

Dual-band operation supporting 2.4GHz and 5GHz frequencies
Integrated PCB trace structure for compact installation
SMA male connector interface for standard RF connectivity

Antennas RF Applications

WiFi and WLAN systems
Bluetooth Low Energy (BLE) devices
Zigbee networks
ISM band applications

Antennas RF Procurement Notes

Verify the specific ordering suffix against the manufacturer's current documentation to ensure correct cable length and connector configuration. Confirm RoHS compliance status and packaging type requirements prior to purchase. Cross-reference the part number with authorized distributor lists to validate authenticity and availability.

Antennas RF Selection Notes

Select this component when dual-band coverage across 2.4GHz and 5GHz is required in space-constrained designs. The integrated PCB form factor eliminates the need for external mounting hardware. Ensure the host device accommodates the 0.5-meter cable routing and SMA connector placement.

Antennas RF Part Context

This model belongs to the Echo 31 series, which focuses on dedicated PCB antennas for wireless communication protocols. The series addresses limitations in congested 2.4GHz networks by providing additional bandwidth support at higher frequencies.
