ECHO35/0.1M/IPEX/S/S/17

$11.31

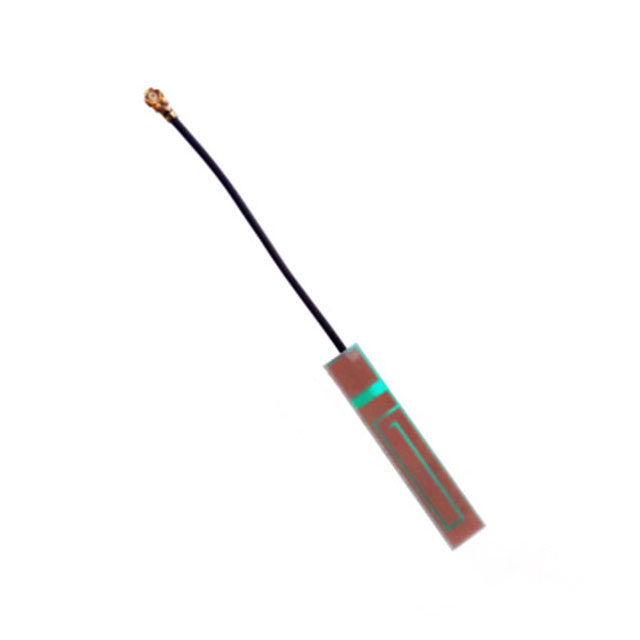

Description：2G/3G/4G EMBEDDED SMALL PCB ANTE
Series：ECHO 35
Mfr：Siretta Ltd
Package：Bulk

SKU:7715b40f69a4 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ECHO35/0.1M/IPEX/S/S/17 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Siretta Ltd. Its product description is 2G/3G/4G EMBEDDED SMALL PCB ANTE. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ECHO35/0.1M/IPEX/S/S/17

Description：2G/3G/4G EMBEDDED SMALL PCB ANTE
Series：ECHO 35
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：Cellular
Frequency Group：UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：825MHz, 2.2GHz
Frequency Range：690MHz ~ 960MHz, 1.7GHz ~ 2.7GHz
Antenna Type：PCB Trace
Number of Bands：2
VSWR：2
Return Loss：-
Gain：2dBi
Features：Cable - 100mm
Termination：U.FL (UMCC), I-PEX MHF1
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.020" (0.50mm)
Applications：GSM, LTE, UMTS
Power - Max：-

Antennas RF datasheet and documents for ECHO35/0.1M/IPEX/S/S/17

ECHO35/0.1M/IPEX/S/S/17

Antennas RF Overview

The Siretta ECHO35/0.1M/IPEX/S/S/17 is an embedded wideband PCB antenna designed for multi-band wireless applications. It supports GSM, LTE, and UMTS protocols alongside WiFi connectivity. The component features a surface mount installation type with an IPEX connector interface. It operates within a frequency range extending up to 5925 MHz, providing a peak gain of 2dBi. The unit includes a 100mm cable length constructed from 1.13 mm coaxial cable.

Antennas RF Feature Summary

Embedded wideband design supporting migration between 2G, 3G, and 4G technologies
Multi-protocol capability including WiFi, GSM, LTE, and UMTS
Surface mount PCB installation with integrated IPEX connector

Antennas RF Applications

GSM network modules
LTE communication devices
UMTS mobile terminals
WiFi enabled embedded systems

Antennas RF Procurement Notes

Verify the specific IPEX connector variant against the target device schematic to ensure mechanical compatibility. Confirm that the operating frequency requirements align with the antenna's wideband specifications covering up to 5925 MHz. Ensure the 100mm cable length fits within the enclosure constraints without obstructing other components or affecting RF performance due to proximity to metal surfaces.

Antennas RF Selection Notes

Select this model when a single antenna solution is required for multiple cellular generations and WiFi. The wideband characteristic simplifies supply chain management by allowing technology upgrades without changing the antenna hardware. Consider the surface mount form factor for compact designs where space is limited. Verify that the 2dBi gain meets the link budget requirements for the intended application environment.

Antennas RF Part Context

This component belongs to the Echo series of antennas manufactured by Siretta Ltd. The series focuses on embedded solutions for wireless connectivity. The ECHO35 specifically addresses the need for versatile antennas in modern IoT and mobile devices that require support for various cellular standards simultaneously.
