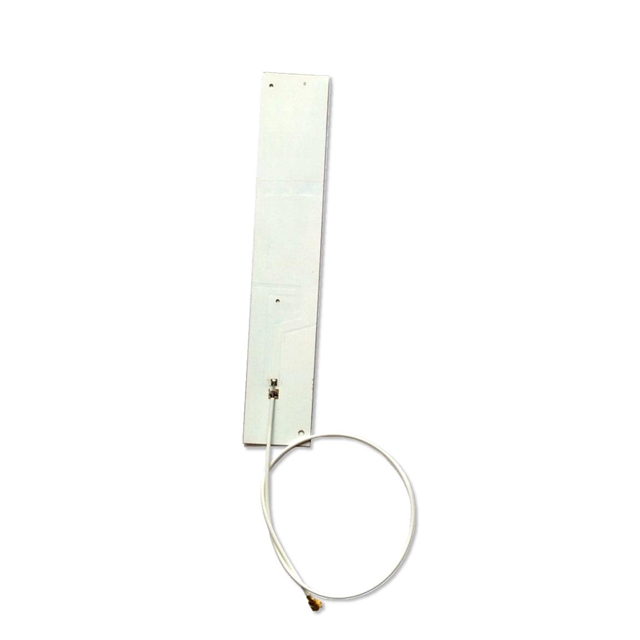

ECHO36/0.1M/IPEX/S/S/26 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Siretta Ltd. Its product description is 2G/3G/4G EMBEDDED SMALL FPC ANTE. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for ECHO36/0.1M/IPEX/S/S/26
- Description：2G/3G/4G EMBEDDED SMALL FPC ANTE
- Series：Echo 36
- Mfr：Siretta Ltd
- Package：Bulk
- RF Family/Standard：Cellular, WiFi
- Frequency Group：UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：829MHz, 2.205GHz
- Frequency Range：698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz
- Antenna Type：Flat Patch
- Number of Bands：2
- VSWR：3
- Return Loss：-
- Gain：3dBi
- Features：Cable - 100mm
- Termination：U.FL (UMCC), I-PEX MHF1
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.008" (0.20mm)
- Applications：2G, 3G, 4G, GSM, LTE, UMTS, Wi-Fi, WLAN
- Power - Max：-
Antennas RF datasheet and documents for ECHO36/0.1M/IPEX/S/S/26
Antennas RF Overview
The Siretta ECHO36/0.1M/IPEX/S/S/26 is a multi-band embedded PCB antenna designed for cellular applications. It operates within a frequency range of 698 MHz to 2700 MHz, supporting 2G, 3G, and 4G standards. The component features a linear polarization and a peak gain of 3 dBi. It utilizes an I-PEX MHF1 connector interface and includes a 100 mm coaxial cable. The antenna is constructed as a flexible printed circuit (FPC) element, suitable for surface mount installation in compact electronic devices requiring wideband connectivity.
Antennas RF Feature Summary
- Wideband operation covering 698 MHz to 2700 MHz for 2G, 3G, and 4G support
- Embedded FPC design with integrated 100 mm coaxial cable
- I-PEX MHF1 connector interface for direct board connection
Antennas RF Applications
- Mobile communication devices
- IoT gateways
- Wireless data terminals
Antennas RF Procurement Notes
Verify the specific manufacturer part number against official Siretta documentation to ensure compatibility with target RF circuits. Confirm that the I-PEX connector type matches the receiving system interface. Check for any updated environmental compliance declarations or RoHS status directly from the manufacturer's current datasheet before finalizing procurement specifications.
Antennas RF Selection Notes
Select this component when a low-profile, multi-band solution is required for cellular bands spanning 698 MHz to 2700 MHz. The embedded FPC form factor is ideal for space-constrained designs where traditional rigid antennas are unsuitable. Ensure the host device layout accommodates the 100 mm cable routing and maintains adequate clearance around the radiating element for optimal performance.
Antennas RF Part Context
This model belongs to the Siretta Echo series of embedded antennas. The series focuses on providing compact, high-performance solutions for mobile and IoT applications. The ECHO36 variant specifically addresses wideband cellular requirements, offering a balance between size and gain for modern wireless protocols.
Antennas RF Replacement Considerations
Consult official Siretta substitution guides for verified alternatives. Generic replacements may not match the specific impedance or radiation pattern requirements of the original design.
