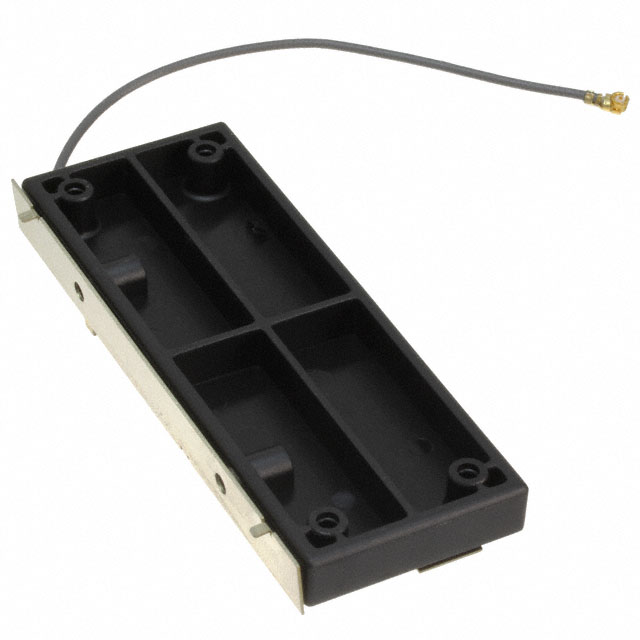

ECHO40/0.1M/UFL/S/S/32

ECHO40/0.1M/UFL/S/S/32 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Siretta Ltd. Its product description is 4G/3G/WIFI EMBEDDED PIFA STYLE A. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ECHO40/0.1M/UFL/S/S/32

• Description：4G/3G/WIFI EMBEDDED PIFA STYLE A
• Series：ECHO 40
• Mfr：Siretta Ltd
• Package：Bulk
• RF Family/Standard：Cellular, WiFi
• Frequency Group：Wide Band
• Frequency (Center/Band)：875MHz, 1.94GHz, 2.6GHz
• Frequency Range：790MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz
• Antenna Type：FlexPIFA
• Number of Bands：3
• VSWR：3
• Return Loss：-
• Gain：0dBi, 2dBi
• Features：Cable - 150mm
• Termination：U.FL (UMCC), I-PEX MHF1
• Ingress Protection：-
• Grade：-
• Qualification：-
• Mounting Type：Solder
• Height (Max)：3.555" (90.30mm)
• Applications：3G, Bluetooth, GSM, LTE, UMTS, WiMax™
• Power - Max：-

Antennas RF datasheet and documents for ECHO40/0.1M/UFL/S/S/32
