ECHO41/0.1M/IPEX/S/S/17

$11.08

Description：2G/3G/4G EMBEDDED SMALL FPC ANTE
Series：ECHO 41
Mfr：Siretta Ltd
Package：Bulk

SKU:babac2b82b2f Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ECHO41/0.1M/IPEX/S/S/17 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Siretta Ltd. Its product description is 2G/3G/4G EMBEDDED SMALL FPC ANTE. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ECHO41/0.1M/IPEX/S/S/17

Description：2G/3G/4G EMBEDDED SMALL FPC ANTE
Series：ECHO 41
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：825MHz, 1.94GHz, 2.6GHz
Frequency Range：690MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz
Antenna Type：Flat Patch
Number of Bands：3
VSWR：2.7
Return Loss：-
Gain：2.7dBi
Features：Cable - 100mm
Termination：U.FL (UMCC), I-PEX MHF1
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.012" (0.30mm)
Applications：2G, 3G, 4G, GSM, LTE, UMTS
Power - Max：-

Antennas RF datasheet and documents for ECHO41/0.1M/IPEX/S/S/17

ECHO41/0.1M/IPEX/S/S/17

Antennas RF Overview

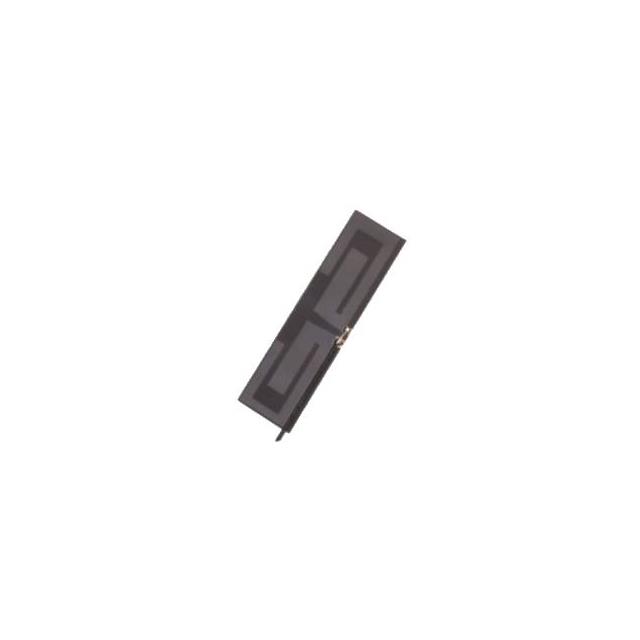

The Siretta ECHO41/0.1M/IPEX/S/S/17 is a multi-band embedded PCB antenna designed for cellular applications. It supports frequencies from 690 MHz to 960 MHz, 1.71 GHz to 2.17 GHz, and 2.5 GHz to 2.7 GHz, covering GSM, LTE, UMTS, and other standards. The unit features an IPEX connector with a 100 mm cable length and utilizes 1.13 mm coaxial cable. It employs a flat patch design suitable for surface mount installation.

Antennas RF Feature Summary

Multi-band coverage for 2G, 3G, and 4G cellular protocols
Compact embedded flat patch design for space-constrained devices
Integrated IPEX connector with short cable assembly

Antennas RF Applications

GSM network modules
LTE communication devices
UMTS handheld equipment

Antennas RF Procurement Notes

Verify the specific frequency band requirements against the component's supported ranges of 690-960 MHz, 1.71-2.17 GHz, and 2.5-2.7 GHz. Confirm that the IPEX connector type and 100 mm cable length align with the system interface specifications. Ensure the surface mount footprint matches the target PCB layout before finalizing the order.

Antennas RF Selection Notes

Select this model when a compact, multi-band solution is required for cellular connectivity. It is appropriate for designs needing support across multiple generations of mobile networks within a small form factor. Consider the impedance matching and radiation pattern requirements relative to the device enclosure to ensure optimal performance.

Antennas RF Part Context

This component belongs to the Siretta Echo series of embedded antennas. It is engineered for integration into portable and industrial wireless devices where size constraints limit the use of larger external antennas. The design prioritizes low profile and reliable signal transmission across diverse cellular bands.
