ECHO47/0.1M/SMAM/36

$3.88

Description：5G/4G FLEXIBLE PRINTED CIRCUIT W
Series：Echo 47
Mfr：Siretta Ltd
Package：Bulk

SKU:29635fbdb593 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ECHO47/0.1M/SMAM/36 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Siretta Ltd. Its product description is 5G/4G FLEXIBLE PRINTED CIRCUIT W. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ECHO47/0.1M/SMAM/36

Description：5G/4G FLEXIBLE PRINTED CIRCUIT W
Series：Echo 47
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：802.15.4, Bluetooth, Cellular, General ISM, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：1.155GHz, 3.479GHz, 3.95GHz
Frequency Range：410MHz ~ 1.9GHz, 433MHz ~ 5.9GHz, 2GHz ~ 6.525GHz
Antenna Type：Flat Patch
Number of Bands：3
VSWR：-
Return Loss：-
Gain：5.84dBi, 5.84dBi
Features：Cable - 100mm
Termination：SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.009" (0.24mm)
Applications：3G, 4G, 5G, Bluetooth, ISM, LoRa, LTE, Sigfox, UMTS, Zigbee™
Power - Max：50 W

Antennas RF datasheet and documents for ECHO47/0.1M/SMAM/36

ECHO47/0.1M/SMAM/36

Antennas RF Overview

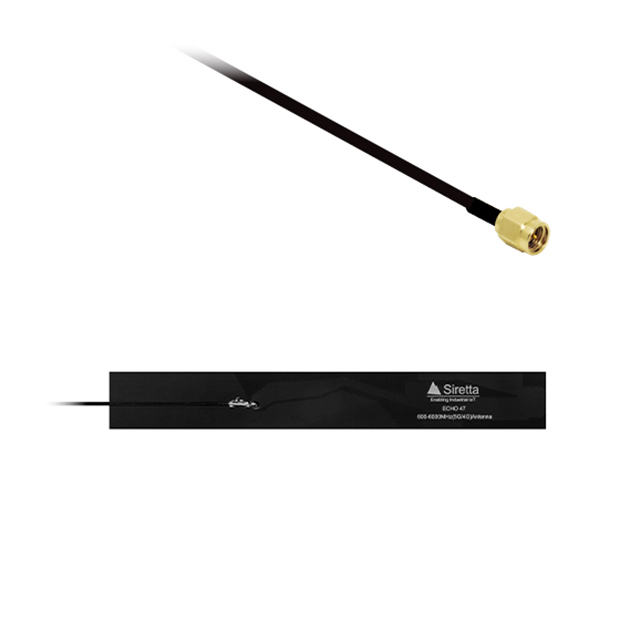

The Siretta ECHO47/0.1M/SMAM/36 is a flexible printed circuit (FPC) wideband antenna designed for multi-band wireless applications. It operates within a frequency range of 600 MHz to 6000 MHz, supporting 5G, 4G, LTE, Bluetooth, ISM, and LoRa protocols. The unit features an SMA male connector with a 50-ohm impedance and includes a 100 mm RG316 cable. Key electrical specifications include a gain of 5.24 dBi and a voltage standing wave ratio (VSWR) of 2.84. The antenna utilizes adhesive mounting and is rated for 50 W power handling.

Antennas RF Feature Summary

Supports multiple wireless standards including 5G, 4G, LTE, Bluetooth, ISM, and LoRa across a wide frequency spectrum
Utilizes flexible printed circuit technology for compact integration into electronic devices
Equipped with a standard SMA male connector and pre-attached coaxial cable

Antennas RF Applications

5G and 4G mobile communication modules
Internet of Things (IoT) sensor nodes
Wireless local area network (WLAN) devices
Bluetooth-enabled consumer electronics

Antennas RF Procurement Notes

Verify the specific model suffix against official Siretta documentation to confirm cable length and connector type accuracy. Ensure the receiving equipment interface matches the SMA male specification. Confirm that the operating environment accommodates the specified power rating and frequency range requirements before finalizing procurement orders.

Antennas RF Selection Notes

Select this component when a low-profile, flexible antenna solution is required for multi-band operation. The wide bandwidth covers diverse protocols from sub-GHz ISM to 5 GHz Wi-Fi and cellular bands. Consider the 100 mm cable length for internal routing constraints and verify that the adhesive mounting method aligns with the target device chassis material.

Antennas RF Part Context

This part belongs to the Siretta ECHO series, which specializes in flexible PCB antennas. The ECHO47 variant specifically addresses the need for broadband coverage in modern wireless gateways and handheld devices. It serves as a critical RF interface component for systems requiring simultaneous support for various cellular and short-range communication standards.
