ECHO5/0.1M/UFL/S/S/15 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Siretta Ltd. Its product description is RF ANT 1.575GHZ CER PATCH U.FL. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for ECHO5/0.1M/UFL/S/S/15
- Description：RF ANT 1.575GHZ CER PATCH U.FL
- Series：ECHO 5
- Mfr：Siretta Ltd
- Package：Bulk
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.575GHz
- Frequency Range：-
- Antenna Type：Ceramic Patch
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：18dB
- Features：-
- Termination：U.FL (UMCC), I-PEX MHF1
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.315" (8.00mm)
- Applications：GPS
- Power - Max：-
Antennas RF datasheet and documents for ECHO5/0.1M/UFL/S/S/15
Antennas RF Overview

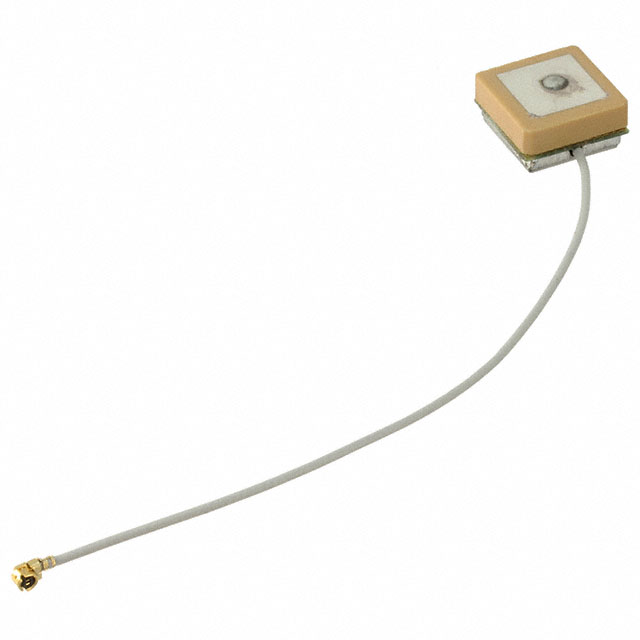

The Siretta ECHO5/0.1M/UFL/S/S/15 is an embedded GPS ceramic patch antenna designed for satellite positioning applications. It operates within the L1 band, specifically centered at 1575.42 MHz with a bandwidth of 10 MHz. The component features a U.FL connector and includes a 100mm cable length. It provides a gain of 3 dBi and utilizes adhesive mounting for PCB integration.
Antennas RF Feature Summary
- Compact embedded design suitable for space-constrained devices
- High-performance ceramic patch construction for reliable satellite tracking
- Integrated U.FL connector interface for direct RF connection
Antennas RF Applications
- Satellite positioning systems
- GPS navigation modules
- Location-based tracking devices
Antennas RF Procurement Notes
Verify the specific datasheet version to confirm impedance matching and polarization details required for your RF front-end design. Ensure the U.FL connector mating cycle ratings meet your assembly requirements. Confirm adhesive compatibility with your PCB substrate material for secure mechanical attachment during operation.
Antennas RF Selection Notes
Select this model when a low-profile, high-gain solution for L1 band GPS reception is required. The integrated cable simplifies routing compared to surface-mount only variants. Consider the U.FL connector size constraints against available board space. This part is optimized for standalone GPS rather than multi-constellation GNSS without additional verification.
Antennas RF Part Context
This component belongs to the Siretta Echo series of embedded antennas. It is distinct from the ECHO19 variant, which also targets GPS but may differ in physical dimensions or specific certification status. The Echo series generally focuses on compact form factors for mobile and IoT applications requiring reliable wireless connectivity.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify if other Echo series models like ECHO19 offer compatible mechanical footprints and electrical specifications before considering alternatives.
