ECLAMP0501T.TCT

Overview

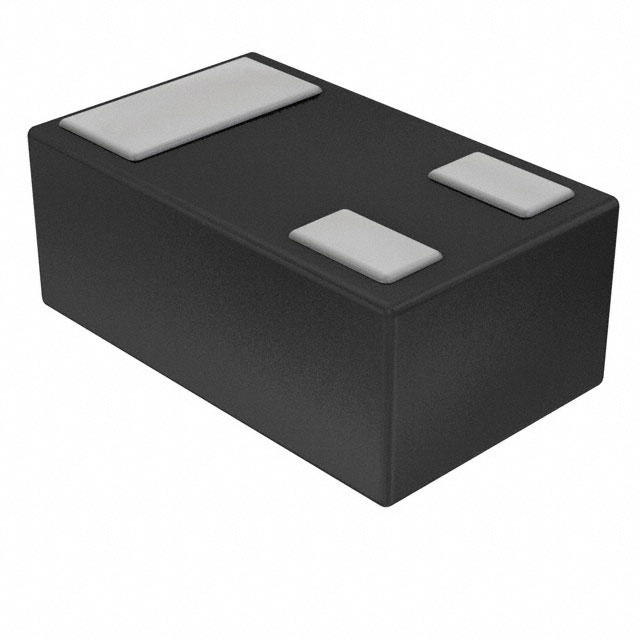

The Semtech ECLAMP0501T.TCT is a unidirectional transient voltage suppression diode designed for high-speed signal line protection. It features a maximum reverse standby voltage of 5V and a minimum breakdown voltage of 6V. The device provides a maximum clamping voltage of 12.5V under peak pulse current conditions, with a peak pulse power dissipation rating of 25W. It operates within a temperature range of -40°C to +85°C and is housed in an SLP1006P3T surface-mount package measuring 1.1mm x 0.7mm x 0.38mm.

Feature Summary

• Provides superior temperature and clamping characteristics for high-energy electrostatic discharge (ESD) and electrical overstress (EOS) events.
• Protects high-speed signal lines from transient voltage spikes while maintaining low profile dimensions.
• Offers reliable system-level ESD and electromagnetic interference circuit protection solutions.

Applications

• Protection of data lines for portable devices
• High-speed signal line protection in consumer electronics
• ESD and EOS protection for USB interfaces

Procurement Notes

Verify the specific ordering suffix TCT against the manufacturer's official datasheet to confirm tape and reel packaging specifications. Ensure the component matches the required unidirectional configuration and 5V operating voltage for the target application. Cross-reference the SLP1006P3T package dimensions with PCB footprint requirements to guarantee mechanical compatibility during assembly.

Selection Notes

Select this component when protecting 5V signal lines requiring robust ESD and EOS immunity. The unidirectional polarity suits single-supply applications where reverse voltage blocking is not required. Consider the 25W peak pulse power rating for transient energy absorption needs. The low capacitance and small form factor make it suitable for space-constrained portable designs.

Part Context

This part belongs to Semtech's EClamp series of ESD protection diodes. The series focuses on providing compact, high-performance protection for sensitive electronic circuits. These components are engineered to meet industry standards for electrostatic discharge immunity, ensuring signal integrity and device reliability in harsh environments.

Replacement Considerations

Consult official cross-reference lists for direct substitutes. Verify that any alternative maintains identical 5V standoff voltage, unidirectional polarity, and SLP1006P3T package dimensions to ensure functional and mechanical interchangeability without redesigning the host circuit board.
