ECM06MMDN

Edgeboard Connectors Overview

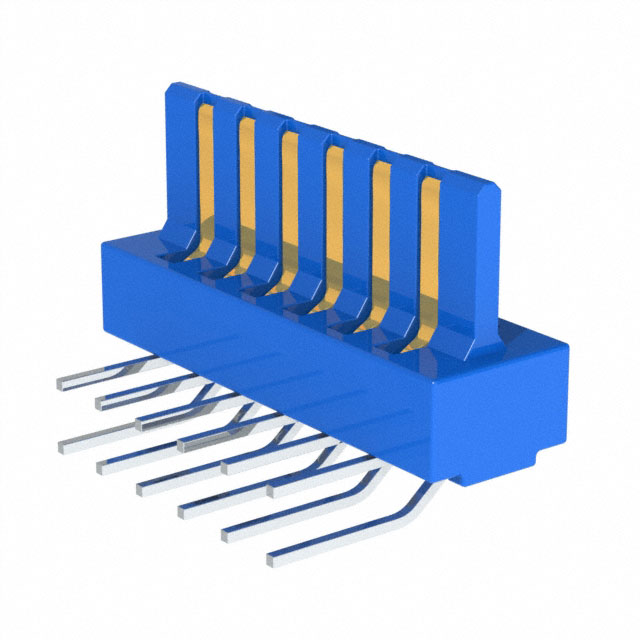

The ECM06MMDN is a dual-row male card edge connector manufactured by Sullins Connector Solutions. It features 12 positions with a 0.156-inch (3.96mm) pitch, designed to mate with female edge cards. The connector utilizes phosphor bronze contacts with 30.0µin gold plating for reliable signal transmission. Insulation is constructed from polybutylene terephthalate (PBT), supporting a wide operating temperature range of -65°C to 125°C. It employs a through-hole right-angle mounting style and accepts a 0.062-inch card thickness.

Edgeboard Connectors Feature Summary

• Dual-row male configuration engineered specifically for mating with female edge cards
• Through-hole right-angle termination ensures secure PCB integration
• Gold-plated phosphor bronze contacts provide durable electrical connectivity
• Polybutylene terephthalate insulation supports high-temperature environments

Edgeboard Connectors Applications

• PCB edge board interconnections
• Electronic assembly modules requiring male card edge interfaces
• Industrial control systems utilizing standard edge card formats

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official Sullins documentation to confirm exact flange characteristics and insulation material properties. Ensure compatibility with target female edge card thicknesses and pin counts. Cross-reference RoHS compliance status if required by project specifications. Confirm right-angle orientation matches the mechanical design constraints before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a male connector is required for female edge cards in a right-angle PCB layout. The 0.156-inch pitch dictates compatible card dimensions. Verify that the PBT insulation material meets thermal requirements. Ensure the through-hole mounting style aligns with the manufacturing process capabilities and board space limitations.

Edgeboard Connectors Part Context

This part belongs to the ECM06 series of edgeboard connectors from Sullins Connector Solutions. The series offers various configurations for different card types and mounting styles. The ECM06MMDN specifically addresses applications needing male contacts for female cards, distinguishing it from female-to-female or male-to-male variants within the broader product family.

Edgeboard Connectors Replacement Considerations

ECM06DSUS is a female counterpart within the same series but serves opposite mating requirements. Direct substitutes require matching pitch, row count, and contact gender. Verify mechanical fit and electrical ratings before swapping components.
