ECMF06-6HSM16

Common Mode Chokes Overview

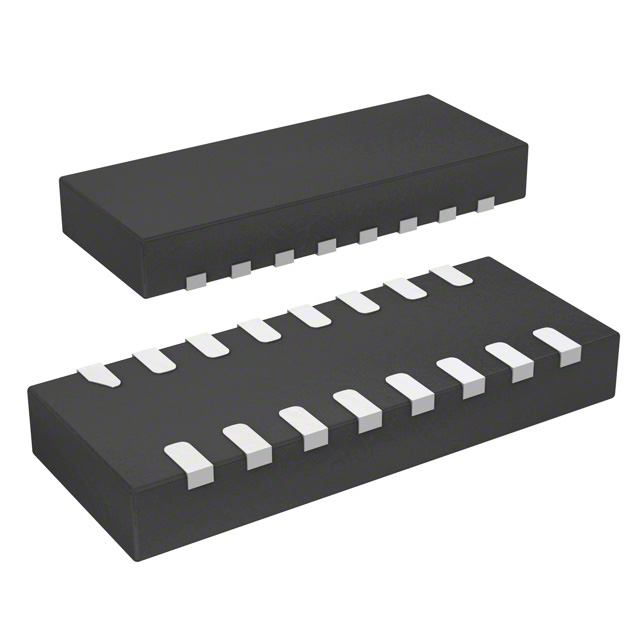

The ECMF06-6HSM16 is a highly integrated common mode filter with ESD protection designed for high-speed differential serial buses. It features six lines and operates within a temperature range of -40°C to +85°C. The device has a typical DC resistance (DCR) of 5 Ohms and a current rating of 100mA. It utilizes a UQFN-16 surface-mount package. This component suppresses EMI/RFI common mode noise while providing electrostatic discharge protection for sensitive interface circuits.

Common Mode Chokes Feature Summary

• Integrates common mode filtering with ESD suppression in a single compact package
• Designed specifically for high-speed differential serial bus applications
• Provides protection against electromagnetic interference and radio frequency interference

Common Mode Chokes Applications

• USB interface protection
• HDMI signal line protection
• DisplayPort circuit protection

Common Mode Chokes Procurement Notes

Verify the End-of-Life status before design finalization, as this component may be discontinued. Confirm availability through authorized distributors only. Ensure the UQFN-16 package footprint matches the PCB layout requirements. Check RoHS compliance documentation for specific regulatory needs. Validate that the 100mA current rating meets system operational demands.

Common Mode Chokes Selection Notes

Select this component when both ESD protection and common mode noise suppression are required on high-speed data lines. The UQFN-16 package offers a small form factor suitable for space-constrained designs. Ensure the operating temperature range of -40°C to +85°C aligns with the application environment. Verify compatibility with the specific voltage levels of the target serial bus standard.

Common Mode Chokes Part Context

This part belongs to STMicroelectronics' ECMF series of common mode filters. These components are engineered to address signal integrity issues in modern digital interfaces. The integration of TVS diodes with magnetic filtering reduces board space compared to discrete solutions. This specific model targets the growing demand for robust protection in multimedia and peripheral connections.

Common Mode Chokes Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Due to the End-of-Life notification, alternative sourcing should be verified carefully. Designers should consult official replacement guides or contact the manufacturer directly for qualified alternatives.
