ECMF2-40A100N6

Common Mode Chokes Overview

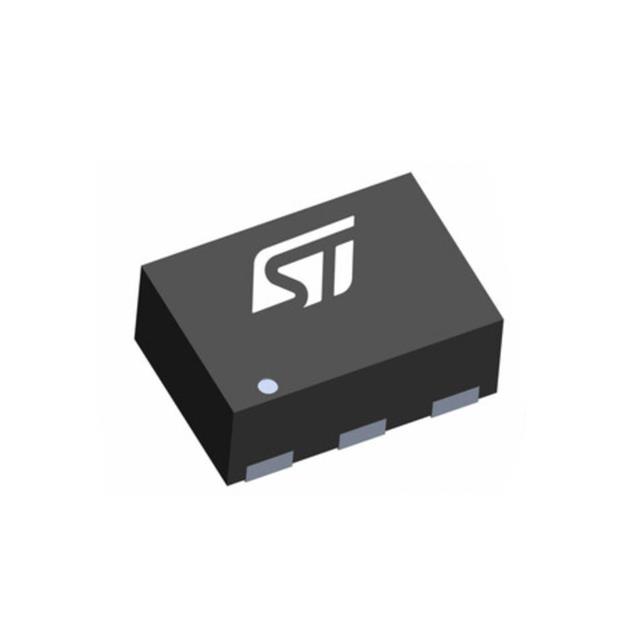

The ECMF2-40A100N6 is a highly integrated common mode filter with ESD protection designed for high-speed serial interfaces. It operates within a temperature range of -55°C to +125°C and utilizes a uQFN-6 package measuring 1.4 x 1.35 mm. The component features two data lines, a capacitance of 250 fF, and an unidirectional configuration. It provides attenuation of -5 dB at 700 MHz and -15 dB at 2.4 GHz, ensuring effective suppression of EMI/RFI noise while protecting sensitive circuits.

Common Mode Chokes Feature Summary

• Integrates common mode filtering with electrostatic discharge protection in a single compact package
• Designed specifically for suppressing electromagnetic interference on high-speed differential serial interfaces
• Utilizes a low-profile uQFN-6 footprint suitable for space-constrained mobile applications

Common Mode Chokes Applications

• Smartphone platforms requiring high-speed data line protection
• High-speed serial interface circuits susceptible to EMI/RFI noise
• Mobile devices needing integrated ESD and filtering solutions

Common Mode Chokes Procurement Notes

Verify the specific suffix N6 against official STMicroelectronics documentation to confirm pinout and electrical characteristics. Ensure compatibility with the target PCB layout dimensions for the uQFN-6 package. Cross-reference operating temperature ranges with system requirements. Confirm RoHS compliance status through current manufacturer declarations before finalizing procurement decisions.

Common Mode Chokes Selection Notes

Select this component when designing high-speed differential links requiring combined EMI filtering and ESD protection. The 250 fF capacitance value supports signal integrity preservation at relevant frequencies. Consider the 1.4 x 1.35 mm package size for dense board layouts. Validate thermal performance across the specified -55°C to +125°C operational range for the intended environment.

Common Mode Chokes Part Context

This part belongs to STMicroelectronics' ECMF portfolio, which targets smartphone and mobile platform applications. The series offers highly integrated solutions for suppressing common mode noise on high-speed interfaces. The ECMF2 variant specifically addresses two-line differential pairs, providing a compact alternative to discrete filter and protection components.

Common Mode Chokes Replacement Considerations

The ECMF4-40A100N10 is a documented substitute within the same portfolio, offering four data lines instead of two. Verify pinout compatibility and electrical specifications before substitution. No other direct replacements are confirmed in available public documentation.
