ECMT1V1717S-100-R

Common Mode Chokes Overview

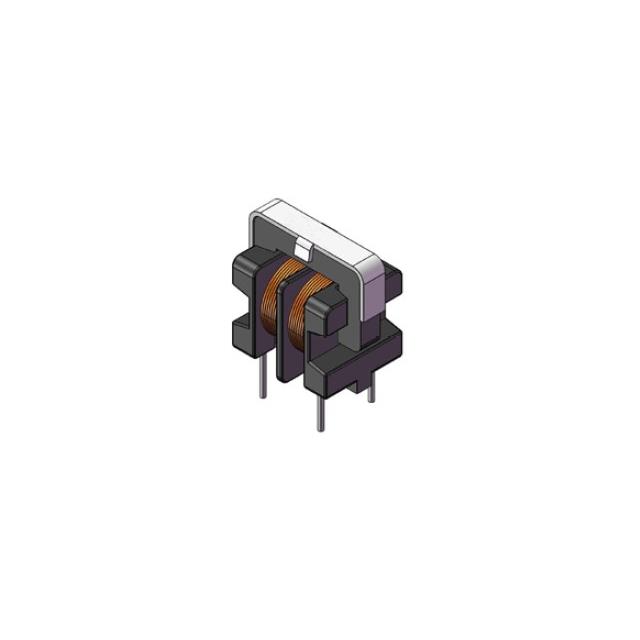

The ECMT1V1717S-100-R is a common mode choke from the Eaton Electronics ECMT-R series. It features a single-channel configuration with a nominal inductance of 10 mH measured at 1 kHz. The component supports a maximum DC current of 1.2 A and exhibits a maximum DC resistance of 600 mOhms. Designed for through-hole PCB mounting, it operates within a temperature range of -40°C to +125°C. The unit is unshielded and utilizes standard mounting techniques.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression via single-channel magnetic filtering
• Supports through-hole installation on printed circuit boards
• Operates reliably across an extended industrial temperature range

Common Mode Chokes Applications

• DC power line filtering
• Noise suppression in electronic circuits
• Common mode interference reduction

Common Mode Chokes Procurement Notes

Verify the specific suffix against official Eaton documentation to confirm electrical characteristics. Ensure the selected variant matches the required inductance and current ratings for the target application. Cross-reference datasheet parameters before integration to guarantee compatibility with system constraints.

Common Mode Chokes Selection Notes

Select this component when a 10 mH inductance value is required for common mode noise attenuation. The 1.2 A current rating suits moderate power applications. Verify that the through-hole package fits the board layout and that the unshielded design does not interfere with adjacent sensitive components.

Common Mode Chokes Part Context

This part belongs to the ECMT-R series of common mode chokes manufactured by Eaton Electronics. The series offers various inductance values tailored for different filtering requirements. The ECMT1V1717S-100-R specifically provides 10 mH inductance for standard mounting configurations.

Common Mode Chokes Replacement Considerations

Consult Eaton Electronics for verified substitute part numbers within the ECMT-R series or equivalent product lines. Ensure any replacement matches the 10 mH inductance, 1.2 A current rating, and through-hole package dimensions.
