ECMT1V2023S-200-R is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Eaton - Electronics Division. Its product description is CMC 20MH 1A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for ECMT1V2023S-200-R
- Description：CMC 20MH 1A 2LN TH
- Series：ECMT1V20
- Mfr：Eaton - Electronics Division
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：1A
- DC Resistance (DCR) (Max)：550mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.787" L x 0.689" W (20.00mm x 17.50mm)
- Height (Max)：0.906" (23.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：20 mH @ 1 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for ECMT1V2023S-200-R
Common Mode Chokes Overview

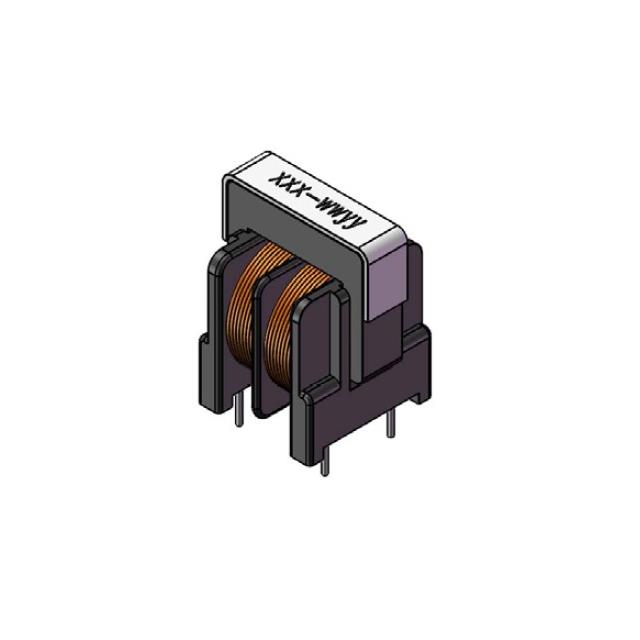

The ECMT1V2023S-200-R is a through-hole common mode choke from the Eaton ECMT-R series. It features an inductance of 20 mH and supports a maximum DC current of 1 A. The component has a maximum DC resistance of 550 mOhms and operates within a temperature range of -40°C to +125°C. Its self-resonant frequency is 245 kHz, with physical dimensions of 23 mm x 20 mm x 17.5 mm.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression for single-channel circuits
- Designed for through-hole PCB mounting applications
- Operates reliably across extended industrial temperature ranges
Common Mode Chokes Applications
- Industrial IoT equipment filtering
- Power supply input stages
- Signal line noise reduction
Common Mode Chokes Procurement Notes
Verify the specific suffix '200' confirms the 20 mH inductance value against the official Eaton datasheet. Ensure the through-hole package dimensions match the target PCB footprint. Confirm RoHS compliance status if required by the end product specifications before finalizing procurement orders.
Common Mode Chokes Selection Notes
Select this component when a 20 mH inductance is required for common mode noise attenuation in single-phase lines. The 1 A current rating suits moderate power applications. Verify that the 550 mOhm DCR meets voltage drop constraints. The unshielded design requires consideration of spatial layout relative to sensitive components.
Common Mode Chokes Part Context
This part belongs to the Eaton ECMT-R series of common mode chokes. The series offers various inductance values ranging from 1 mH to 85 mH. These components are engineered for robust performance in demanding electronic environments, providing reliable EMI suppression for industrial and commercial electronics.
Common Mode Chokes Replacement Considerations
Cross-reference with other ECMT1V2023S variants for different inductance values. Verify pin compatibility and thermal characteristics when substituting with similar through-hole common mode chokes from other manufacturers.
