Product Detailed Parameters

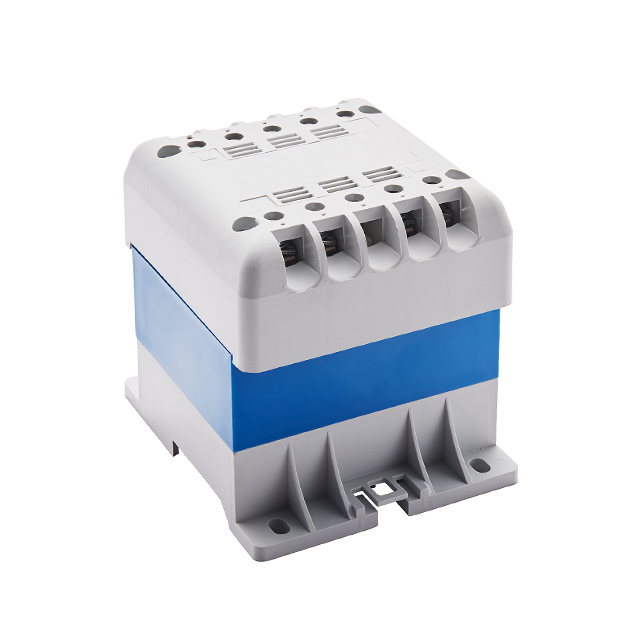

- Description：PWR XFMR LAMINATED 450VA CHAS MT
- Series：EcoTran
- Mfr：Signal Transformer
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V, 230V
- Voltage - Secondary (Full Load)：Parallel 20V, Series 40V
- Current - Output (Max)：Parallel 22.6A, Series 11.3A
- Primary Winding(s)：Dual
- Secondary Winding(s)：Dual
- Center Tap：No
- Power - Max：450VA
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Size / Dimension：126.00mm L x 136.00mm W
- Height - Seated (Max)：124.50mm
- Voltage - Isolation：4000Vrms
- Weight：-
Download product information
Overview
The ECO-450-40 is a single-phase laminated core power transformer rated at 450VA. It features dual primary voltage options of 115V and 230V, supporting both parallel and series configurations for 50/60Hz operation. The secondary winding provides split outputs of 20V and 40V, available in parallel (22.6A) or series (11.3A) arrangements. This component offers a dielectric strength of 4000Vrms and utilizes chassis mounting with screw terminals.
Feature Summary
- Offers versatile primary voltage configuration for 115V or 230V input systems
- Provides flexible secondary output options through parallel or series wiring
- Ensures electrical isolation with high dielectric strength rating
- Utilizes laminated core construction for standard power transformation
Applications
- Industrial drive isolation
- General purpose power distribution
- Equipment requiring 115V/230V to 20V/40V conversion
Procurement Notes
Verify the specific terminal configuration and mounting requirements against the mechanical drawings before procurement. Confirm that the required current ratings align with the parallel or series secondary connections. Ensure the installation environment supports the thermal characteristics of a 450VA laminated core unit. Cross-reference the datasheet for exact pinout definitions to prevent wiring errors during assembly.
Selection Notes
Select this model when a 450VA capacity is required for isolating power between primary mains voltages and lower secondary levels. Consider the physical dimensions and weight constraints associated with laminated core designs. Evaluate whether the fixed 50/60Hz frequency range meets the operational standards of the target application. Compare alternative ratings if higher or lower power handling is necessary.
Part Context
This component belongs to the ECO series of power transformers manufactured by Signal Transformer. The series typically ranges from 105VA to 450VA ratings. These units are designed for industrial applications requiring reliable isolation and robust construction. The ECO line emphasizes standard specifications with chassis mount capabilities for easy integration into larger equipment frameworks.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing footprints and electrical parameters if sourcing alternatives. Consult manufacturer catalogs for direct equivalents within the same series or similar VA ratings.
