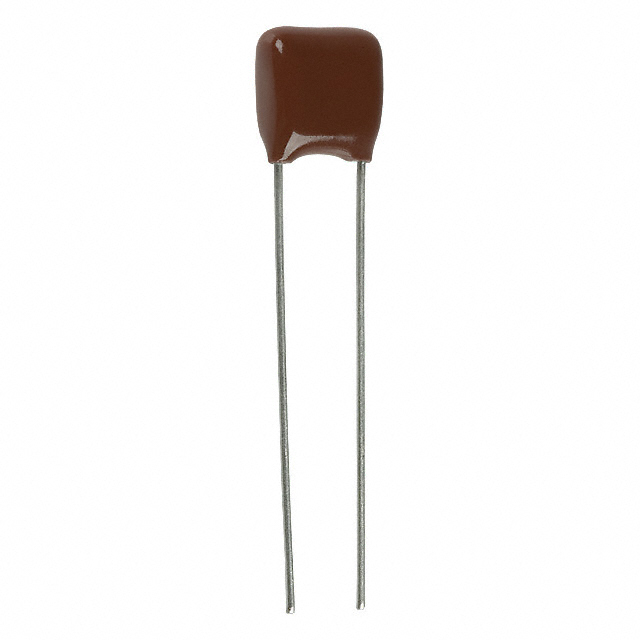

Film Capacitors ECQ-B1H563JF product image

ECQ-B1H563JF

Description：CAP FILM 0.056UF 5% 50VDC RADIAL
Series：ECQ-B(F)
Mfr：Panasonic Electronic Components
Package：Bulk

SKU:0fbe3fda0e74 Category: Film Capacitors Brand: Panasonic Electronic Components

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ECQ-B1H563JF is listed in the Film Capacitors range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CAP FILM 0.056UF 5% 50VDC RADIAL. Review the specifications below when checking this part for your BOM.

Film Capacitors specifications for ECQ-B1H563JF

Description：CAP FILM 0.056UF 5% 50VDC RADIAL
Series：ECQ-B(F)
Mfr：Panasonic Electronic Components
Package：Bulk
Capacitance：0.056 µF
Tolerance：±5%
Voltage Rating - AC：-
Voltage Rating - DC：50V
Dielectric Material：Polyester
Operating Temperature：-40°C ~ 105°C
Mounting Type：Through Hole
Package / Case：Radial
Size / Dimension：0.315" L x 0.169" W (8.00mm x 4.30mm)
Height - Seated (Max)：0.335" (8.50mm)
Termination：PC Pins
Lead Spacing：0.197" (5.00mm)
Applications：General Purpose
Ratings：-
Features：-
ESR (Equivalent Series Resistance)：-

Film Capacitors datasheet and documents for ECQ-B1H563JF
