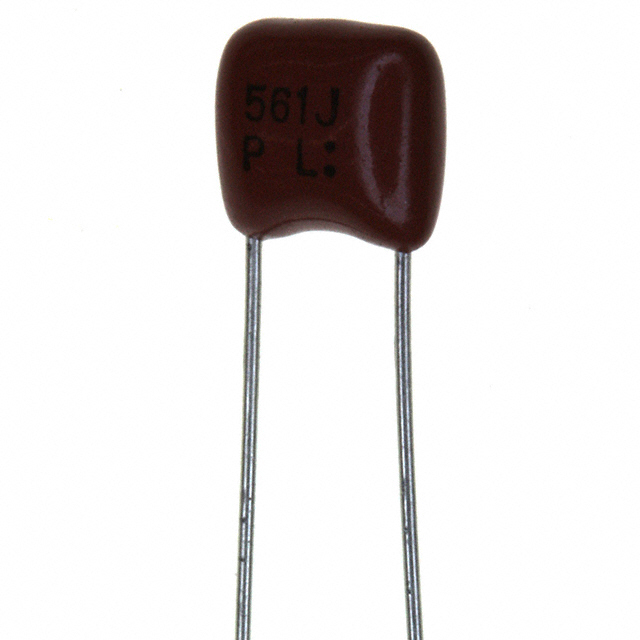

Film Capacitors ECQ-P1H561JZ product image

ECQ-P1H561JZ

Description：CAP FILM 560PF 5% 50VDC RADIAL
Series：ECQ-P(Z)
Mfr：Panasonic Electronic Components
Package：Bulk

SKU:d2c3282465b0 Category: Film Capacitors Brand: Panasonic Electronic Components

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ECQ-P1H561JZ is listed in the Film Capacitors range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CAP FILM 560PF 5% 50VDC RADIAL. Review the specifications below when checking this part for your BOM.

Film Capacitors specifications for ECQ-P1H561JZ

Description：CAP FILM 560PF 5% 50VDC RADIAL
Series：ECQ-P(Z)
Mfr：Panasonic Electronic Components
Package：Bulk
Capacitance：560 pF
Tolerance：±5%
Voltage Rating - AC：-
Voltage Rating - DC：50V
Dielectric Material：Polypropylene (PP)
Operating Temperature：-40°C ~ 85°C
Mounting Type：Through Hole
Package / Case：Radial
Size / Dimension：0.335" L x 0.177" W (8.50mm x 4.50mm)
Height - Seated (Max)：0.492" (12.50mm)
Termination：PC Pins
Lead Spacing：0.197" (5.00mm)
Applications：High Frequency, Switching
Ratings：-
Features：-

Film Capacitors datasheet and documents for ECQ-P1H561JZ

ECQ-P1H561JZ
