ECS-2100A-283.2

Oscillators Overview

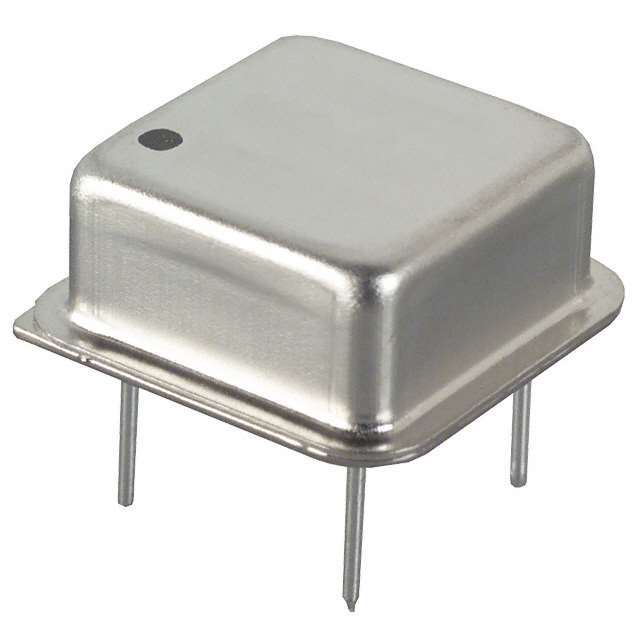

The ECS-2100A-283.2 is a standard crystal oscillator (XO) manufactured by ECS Inc. It operates at a nominal frequency of 28.322 MHz with a frequency stability of ±100 ppm. The device utilizes HCMOS and TTL output logic levels, ensuring compatibility with various digital systems. It requires a supply voltage of 5V and draws a maximum supply current of 46 mA. The component is housed in an 8-pin DIP package featuring a half-size metal can with four leads, designed for through-hole mounting on printed circuit boards.

Oscillators Feature Summary

• Provides stable clock signals using HCMOS and TTL output interfaces
• Encased in a durable half-size metal can package for environmental protection
• Operates within a standard commercial temperature range

Oscillators Applications

• General-purpose digital clock generation
• Microprocessor system timing references
• Communication equipment signal synchronization

Oscillators Procurement Notes

Verify the specific ordering suffix to ensure the correct frequency tolerance and load capacitance match your design requirements. Confirm that the 5V supply voltage aligns with your system's power rails. Check the operating temperature range against your environmental conditions. Ensure the through-hole package dimensions fit your PCB layout constraints before finalizing procurement.

Oscillators Selection Notes

Select this component when a 28.322 MHz clock source with ±100 ppm stability is required. Consider the 5V supply requirement and HCMOS/TTL output compatibility with your target logic family. Evaluate the physical size of the half-size metal can DIP package against available board space. Compare performance needs against alternative frequencies if exact matching is not critical.

Oscillators Part Context

This part belongs to the ECS-2100A series of standard crystal oscillators from ECS Inc. International. These components are designed as drop-in replacements for older discrete crystal circuits, offering integrated functionality in a compact metal can package. The series supports various frequencies and output types, catering to diverse industrial and commercial electronic applications requiring reliable timing sources.

Oscillators Replacement Considerations

Direct substitutes must match the 28.322 MHz frequency, 5V supply, and HCMOS/TTL outputs. Verify pinout compatibility for the 8-pin DIP configuration. Ensure equivalent frequency stability and operating temperature ranges. Consult manufacturer cross-reference lists for verified equivalents with identical electrical characteristics.

Oscillators FAQ

What is the output logic type of the ECS-2100A-283.2?

The component supports both HCMOS and TTL output logic levels.

What is the frequency stability specification?

The frequency stability is specified at ±100 ppm over the operating temperature range.
