ECS-2520SMV-200-GP-TR

Oscillators Overview

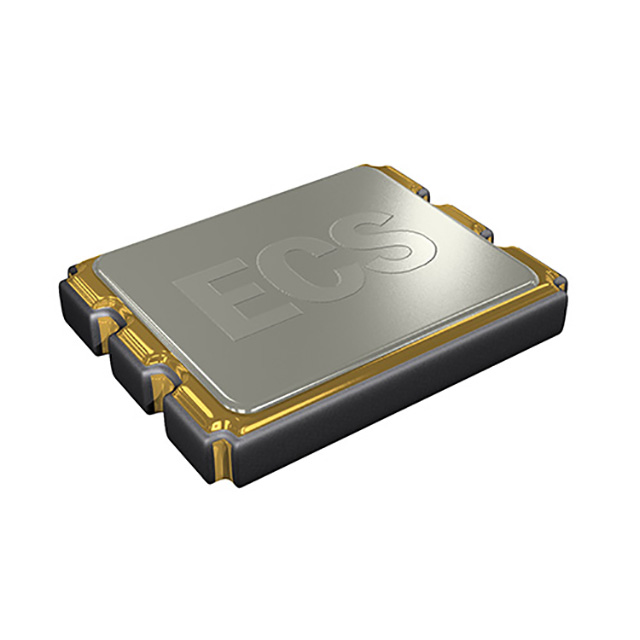

The ECS-2520SMV-200-GP-TR is a standard HCMOS crystal oscillator operating at 20 MHz. It features MultiVolt™ technology with a supply voltage range of 1.62 V to 3.63 V and frequency stability of ±5 ppm. The device supports enable/disable functionality, draws a maximum supply current of 10 mA, and operates within a temperature range of -40°C to +105°C. It is housed in a compact 4-SMD, no-lead package measuring 2.50 mm x 2.00 mm.

Oscillators Feature Summary

• MultiVolt™ multi-voltage operation supporting 1.62 V to 3.63 V
• Enable/Disable control function for power management
• Compact 4-SMD surface-mount ceramic package

Oscillators Applications

• Portable electronic devices requiring low power consumption
• Embedded systems needing stable clock sources
• Industrial equipment operating in wide temperature ranges

Oscillators Procurement Notes

Verify the specific suffix 'GP' indicates general purpose specifications against the official datasheet. Confirm that the 20 MHz frequency aligns with system requirements. Ensure the 4-SMD footprint matches the PCB design. Check RoHS compliance status if required by project standards.

Oscillators Selection Notes

Select this component when a 20 MHz clock signal is required with tight ±5 ppm stability. The MultiVolt™ feature allows flexibility in power supply design across 1.62 V to 3.63 V. The enable/disable pin provides additional power control capabilities for battery-operated applications.

Oscillators Part Context

This part belongs to the ECS-2520SMV series of miniature surface-mount oscillators from ECS Inc. The series utilizes MultiVolt™ technology to support various supply voltages. These oscillators are designed for high reliability in demanding environments with wide temperature tolerance.

Oscillators Replacement Considerations

Direct substitutes include other 20 MHz HCMOS oscillators in 4-SMD packages with similar voltage and stability specs. Verify pinout compatibility and thermal characteristics before substitution.
