ECS-38SMF45A30

Overview

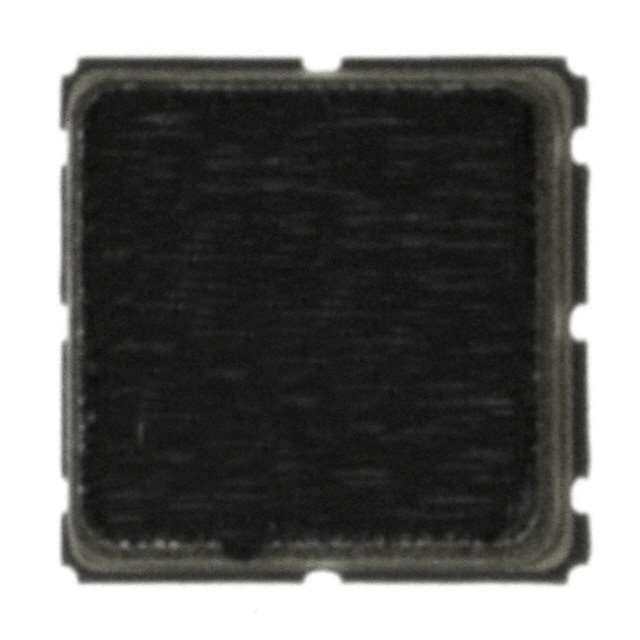

The ECS-38SMF45A30 is a monolithic crystal filter manufactured by ECS Inc. It operates at a center frequency of 45 MHz with a bandwidth of 30 kHz. The component features a 2-pole design and an insertion loss of 2.5 dB. It has a ripple specification of 1 dB and an impedance of 1.1 kOhms. The device is housed in a surface-mount package measuring 3.80mm x 3.80mm. It supports an operating temperature range from -30°C to 80°C.

Feature Summary

• Provides precise frequency filtering for RF applications
• Surface-mount design for compact integration
• Monolithic crystal construction for stability

Applications

• RF signal processing
• Frequency filtering circuits
• Communication systems

Procurement Notes

Verify the specific part number ECS-38SMF45A30 against official ECS Inc. documentation to confirm technical specifications. Ensure compatibility with system requirements regarding center frequency, bandwidth, and package dimensions. Check for any specific ordering suffixes that may alter performance characteristics. Confirm availability through authorized distributors.

Selection Notes

Select this component when a 45 MHz center frequency with 30 kHz bandwidth is required. Consider the 2.5 dB insertion loss and 1.1 kOhm impedance for circuit matching. The SMD package size of 3.80mm x 3.80mm fits space-constrained designs. Verify temperature range suitability for the intended environment.

Part Context

This part belongs to the ECS Inc. family of monolithic crystal filters. These components are designed for high-performance filtering in electronic circuits. The series offers various frequencies and bandwidths to meet different application needs. The ECS-38SMF45A30 specifically targets the 45 MHz band.

FAQ

What is the center frequency of the ECS-38SMF45A30?

The center frequency is 45 MHz.

What is the bandwidth of this filter?

The bandwidth is 30 kHz.
