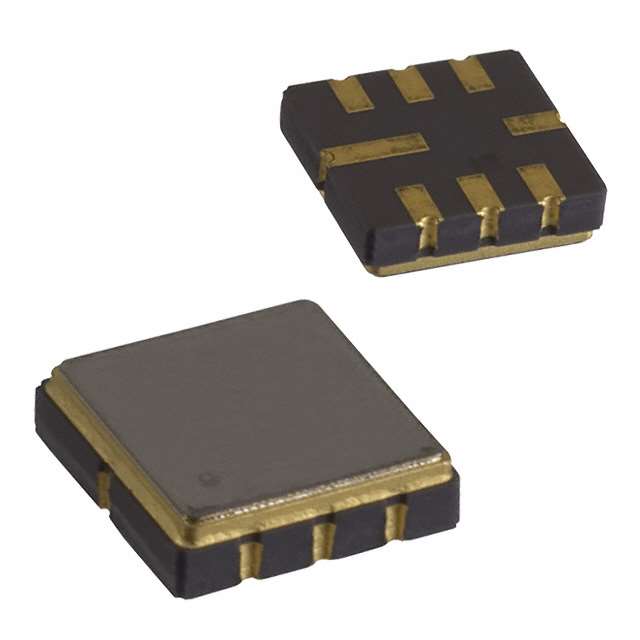

ECS-DSF400.0A-51-TR

$1.70

Description：FILTER SAW 400MHZ 8SMD
Series：-
Mfr：ECS Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:cbb46addc068 Category: SAW Filters Brand: ECS Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FILTER SAW 400MHZ 8SMD
Series：-
Mfr：ECS Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Frequency - Center：400MHz
Bandwidth：-
Insertion Loss：6dB
Ratings：-
Applications：Cellular, GSM
Mounting Type：Surface Mount
Package / Case：8-SMD, No Lead
Height (Max)：0.059" (1.50mm)
Size / Dimension：0.197" L x 0.197" W (5.00mm x 5.00mm)

Download product information

ECS-DSF400.0A-51-TR

Overview

The ECS-DSF400.0A-51-TR is a Surface Acoustic Wave (SAW) filter designed for intermediate frequency applications in GSM cellular systems. It operates at a nominal center frequency of 400 MHz with a maximum insertion loss of 6 dB. The component features an input impedance of 600 ohms in parallel with 90 nH. It is housed in an 8-SMD, no-lead package with a 5.0 x 5.0 mm footprint and supports extended temperature ranges while remaining RoHS compliant.

Feature Summary

Designed as an IF filter specifically for GSM cellular applications
Utilizes Surface Acoustic Wave technology for RF signal processing
Available in a compact SMD package suitable for surface mount assembly

Applications

GSM cellular communication systems
Intermediate frequency filtering in mobile devices
RF front-end modules requiring SAW filter solutions

Procurement Notes

Verify the complete part number including suffixes such as -TR for tape and reel configuration. Confirm that the 5.0 x 5.0 mm footprint matches your PCB design constraints. Ensure compatibility with the specified 400 MHz center frequency for your specific GSM application requirements before ordering.

Selection Notes

Select this component when a dedicated SAW filter is required for GSM IF stages. Consider the 6 dB insertion loss limit and 600 ohm input impedance for circuit matching. The extended temperature range makes it suitable for diverse environmental conditions compared to standard commercial grade parts.

Part Context

This device belongs to the ECS-DSF series of SAW filters manufactured by ECS Inc. International. These components are engineered for high-performance RF filtering in wireless communications. The series offers various center frequencies tailored to different cellular standards and band requirements.
