ECS-P8F5-AN

Overview

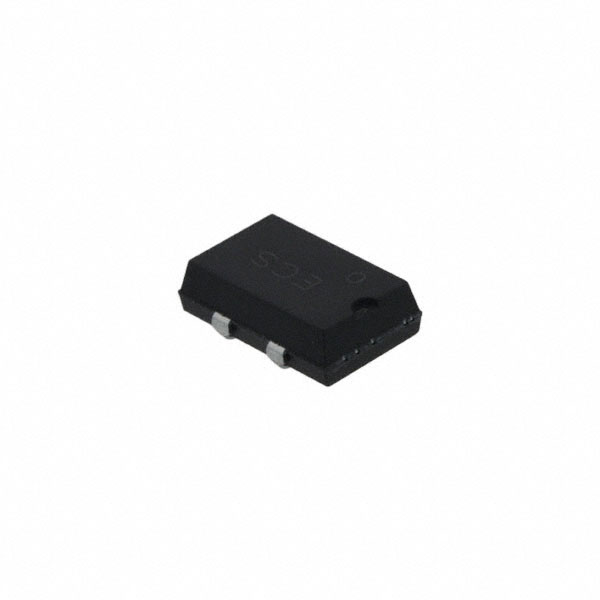

The ECS-P8F5-AN is a programmable HCMOS output clock oscillator manufactured by ECS Inc. International. It operates within a frequency range of 1 MHz to 150 MHz and utilizes a 4-SOJ surface mount package with a 5.08 mm pitch. The device supports a 5V supply voltage and features enable/disable functionality. It offers a frequency stability of 100 ppm and functions across an operating temperature range of -10°C to 70°C, with a maximum supply current of 45 mA.

Feature Summary

• Programmable frequency generation capability for flexible system timing requirements
• Integrated enable and disable control for power management optimization
• Standard HCMOS output interface compatible with digital logic circuits

Applications

• General purpose timing synchronization in electronic systems
• Clock signal generation for microprocessor-based designs
• Timing reference sources for industrial control equipment

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct pinout and electrical specifications. Confirm that the 4-SOJ package dimensions match the target PCB footprint. Ensure the selected variant meets the required operating temperature range and stability tolerance for the intended application environment before finalizing procurement.

Selection Notes

Select this component when a programmable HCMOS oscillator with a 5V supply is required. Consider the 100 ppm stability specification for applications with moderate timing precision needs. Evaluate the 4-SOJ package size against available board space constraints. Verify compatibility with the system's clock distribution network and load requirements prior to integration.

Part Context

This part belongs to the ECS P8F5 series of programmable oscillators designed for standard surface mount applications. The series provides flexible frequency options within a defined operational envelope. It serves as a timing solution for designs requiring precise clock signals without the complexity of external crystal and capacitor networks typically needed for discrete oscillator implementations.

Replacement Considerations

The ECS-P8F5-A is a related variant within the same product family. Verify functional equivalence and pin compatibility before substitution. Cross-reference datasheets to confirm identical package dimensions and electrical characteristics. Ensure any alternative components meet the same frequency range and stability requirements.
