ECX-L37BN-106.250

Oscillators Overview

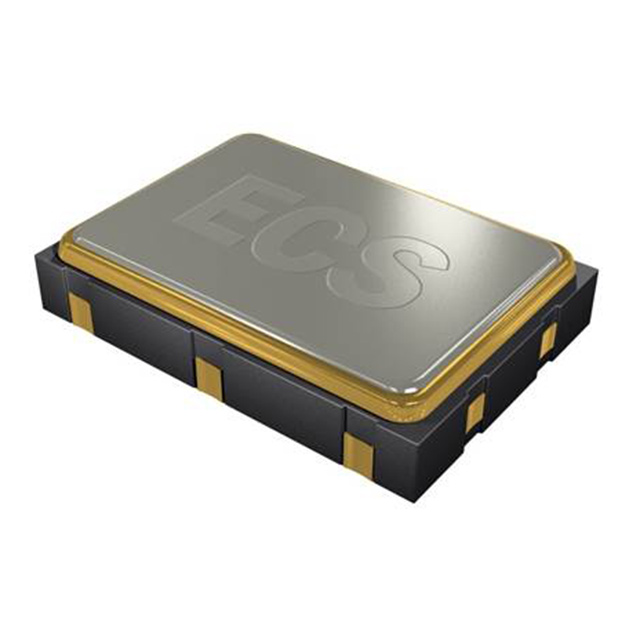

The ECX-L37BN-106.250 is a standard clock oscillator manufactured by ECS Inc., operating at a frequency of 106.25 MHz. It utilizes LVDS output signaling and requires a 3.3V supply voltage. The device offers a frequency stability of ±50ppm and functions within an operating temperature range of -40°C to +85°C. Packaged in a surface-mount format, this component serves as a precise timing source for digital circuits requiring low-jitter clock signals.

Oscillators Feature Summary

• Generates stable 106.25 MHz clock signals using LVDS output technology
• Operates reliably across industrial temperature ranges from -40°C to +85°C
• Designed for high-speed digital applications requiring precise timing

Oscillators Applications

• High-speed digital system clocking
• Data communication interface timing
• Network equipment synchronization

Oscillators Procurement Notes

Verify the specific package dimensions and pinout configuration against your PCB footprint requirements before integration. Confirm that the LVDS output compatibility matches your receiver inputs. Ensure the 3.3V supply rail meets the current consumption specifications outlined in the official datasheet. Check for any RoHS compliance documentation if required by your manufacturing standards.

Oscillators Selection Notes

Select this model when a 106.25 MHz frequency is strictly required for the application. The LVDS output is suitable for noise-sensitive environments compared to CMOS outputs. Consider the ±50ppm stability requirement against your system's jitter tolerance. Verify that the -40°C to +85°C temperature range covers your operational environment constraints.

Oscillators Part Context

This component belongs to the ECX-L series of standard oscillators from ECS Inc. The series provides various frequencies with consistent packaging and electrical characteristics. The BN suffix typically denotes specific performance or packaging variations within the family. This part represents a specialized timing solution for fixed-frequency applications.

Oscillators Replacement Considerations

Direct substitutes must match the 106.25 MHz frequency, LVDS output type, and 3.3V supply voltage. Verify pin compatibility and thermal characteristics for equivalent performance.
